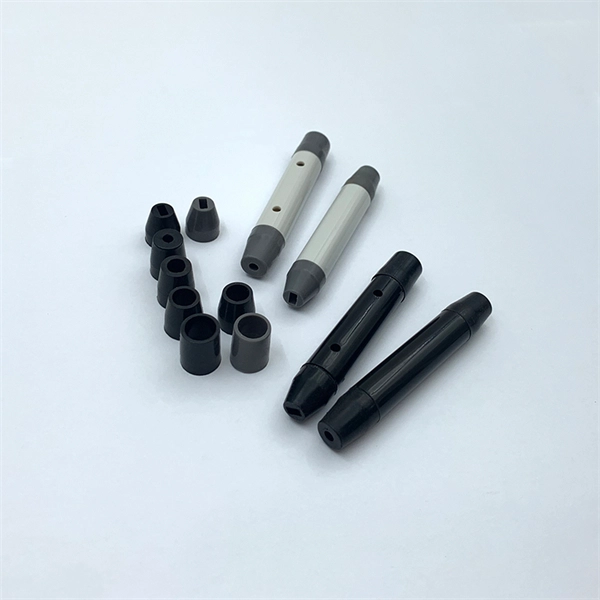

How to make a fiber optic patch cord connector

Making a fiber optic patch cord connector involves precise cable preparation, ferrule insertion, connector assembly, polishing, and testing to ensure reliable optical performance.Tools and Materials Needed

To make a fiber optic patch cord connector, you will need:

• Fiber optic cable (single-mode or multi-mode)
• Fiber optic connectors (LC, SC, FC, ST, etc.)
• Epoxy or adhesive for ferrule bonding
• Ferrules (ceramic or metal)
• Stripping tools for fiber coating
• Cleaver for precise fiber cutting
• Polishing films and pads
• Crimping tools and connector boots
• Cleaning supplies (alcohol wipes, lint-free cloths)
• Optional: fast connectors for no-fusion termination

Step-by-Step Process1. Cable Preparation

• Measure and cut the fiber optic cable to the required length, leaving extra length for handling and connector termination .
• Strip the outer jacket and buffer coating carefully to expose the bare fiber without causing micro-cracks .
• Clean the exposed fiber with alcohol wipes to remove any dust or debris .

2. Ferrule Insertion and Epoxy Application

• Apply a precise amount of epoxy into the ferrule using a controlled dispensing method to avoid bubbles or overflow .
• Insert the stripped fiber into the ferrule, ensuring it is centered to minimize insertion loss .
• Cure the epoxy in a controlled-temperature oven or allow it to set according to the adhesive specifications .

3. Connector Assembly

• Slide the connector components (boot, strain relief, polarity markers) onto the cable before final assembly .
• Assemble the connector by securing the ferrule and other components, using crimping tools if required .
• For fast connectors, follow the manufacturer's instructions to snap the fiber into place without fusion splicing .

4. Polishing

• Polish the ferrule endface using a multi-step polishing process to achieve a smooth, flat, and clean surface .
• Use progressively finer polishing films to remove scratches and ensure optimal optical performance .

5. Testing and Quality Control

• Inspect the connector endface under a microscope to check for scratches, chips, or contamination .
• Test insertion loss (IL) and return loss (RL) to ensure the patch cord meets performance specifications .
• Rework any connectors that fail inspection or testing before final labeling and packaging .

Tips for High-Quality Patch Cords

• Maintain a clean workspace to prevent dust contamination.
• Handle fibers carefully to avoid bending beyond the minimum bend radius.
• Ensure epoxy is mixed and applied consistently to prevent micro-bubbles.
• Verify connector type compatibility (UPC vs APC) to avoid signal issues . By following these steps carefully, you can produce reliable fiber optic patch cord connectors suitable for telecommunications, data centers, or networking applications .
