Home Fiber Optic Patch Cord Pigtail

Fiber optic pigtails are for permanent splicing, while patch cords are ready-to-use jumper cables for connecting devices in your home network.Key Differences

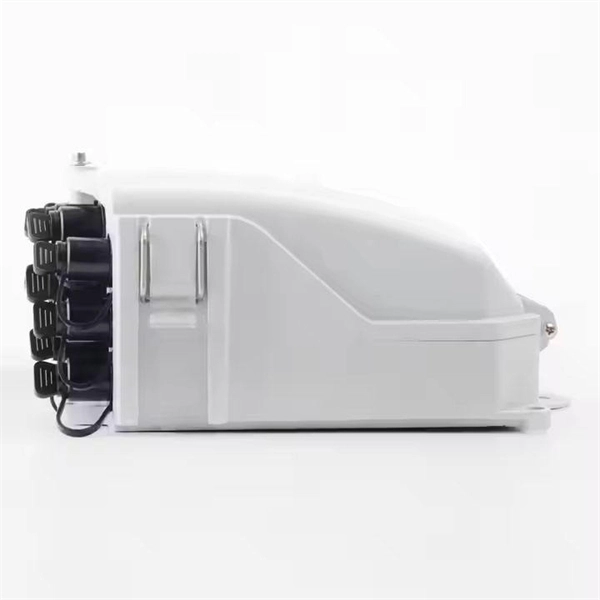

• Pigtail: A short fiber cable with a connector on one end and bare fiber on the other. It is fusion-spliced to your main fiber line inside a termination box or optical distribution frame (ODF). Pigtails are permanent and provide low-loss, reliable connections for long-term use .
• Patch Cord (Jumper): A fiber cable with connectors on both ends, ready to plug into devices like routers, switches, or patch panels. Patch cords are reconfigurable, ideal for connecting equipment or making temporary changes without touching splices .

Connector Types and Polishing

Common connectors for home use include LC, SC, ST, and FC, with options for single-mode (SM) or multi-mode (MM) fibers. Polishing types include PC, UPC, and APC, which affect signal reflection and insertion loss . For home networks, LC or SC connectors with UPC polish are most common.

Choosing Single-Mode vs. Multi-Mode

• Single-Mode (SM): Best for long-distance or future-proofing, typically used in FTTH (fiber-to-the-home) installations.
• Multi-Mode (MM): Suitable for short distances, such as within a home or between rooms. OM3 or OM4 MM fibers support higher speeds (10G) over moderate distances .

Installation Tips

1. Use pigtails for splicing: Splice the pigtail to the main fiber inside a termination box to create a clean interface.
2. Use patch cords for device connections: Connect your router, switch, or media converter to the pigtail or patch panel.
3. Label and color-code: Helps avoid confusion and speeds up troubleshooting.
4. Keep spare cords: Having extra patch cords and pigtails ensures quick repairs or upgrades .

Practical Recommendation for Home Use

For a typical in-home fiber setup:

• Pigtails: Use 1–2 meters, single-mode LC UPC for splicing to the incoming fiber.
• Patch cords: Use 1–3 meters, matching connector type to your devices. Duplex cables are recommended for bidirectional communication.
• Quality: Purchase from reputable suppliers to ensure well-polished ends and low signal loss . By combining pigtails for permanent splices and patch cords for flexible connections, you can maintain a reliable, low-loss home fiber network that is easy to manage and upgrade.
