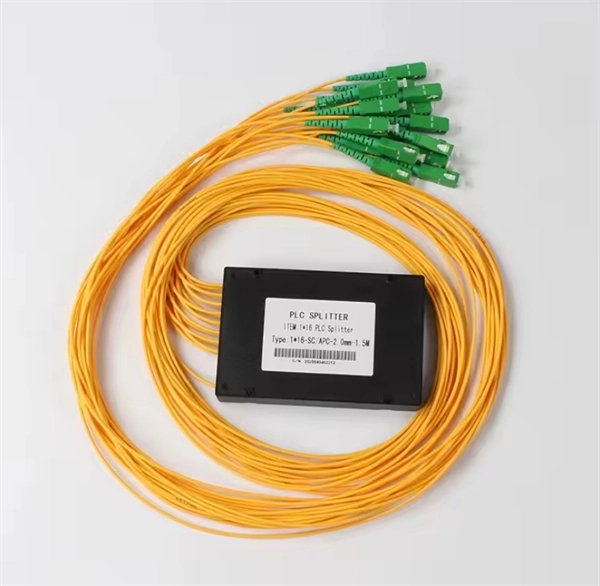

Router splitter for fiber optic cables

A fiber optic splitter divides a single fiber signal to multiple outputs, which can then connect to routers via an ONT to distribute high-speed internet to multiple devices or locations.Understanding Fiber Optic Splitters

A fiber optic splitter is a passive device that splits one incoming optical signal into multiple outputs without requiring power, making it ideal for sharing a single fiber line among multiple users or devices . Splitters come in various ratios, such as 1:2, 1:4, or 1:32, determining how the signal is divided. Each output receives a portion of the original signal, and the split ratio affects signal strength, so careful planning is needed to avoid degradation . Splitters can be cascaded—connecting one splitter to another—to expand connectivity, but each additional splitter introduces signal loss. For example, a 1x2 splitter typically causes ~3.5 dB loss per output, so cascading multiple splitters requires monitoring signal strength and possibly using amplifiers if needed .

Connecting Fiber to a Router

To connect a router to a fiber optic network, follow these steps:

1. Install an Optical Network Terminal (ONT): The ONT converts the incoming light signal from the fiber into an electrical signal that your router can interpret . Most ISPs provide the ONT.
2. Connect the Fiber Cable: Plug the fiber optic cable from the wall outlet or splitter into the ONT's designated port. Ensure connectors (SC/APC or SC/UPC) are properly seated to prevent signal loss .
3. Link ONT to Router: Use a high-quality Ethernet cable (Cat6a or higher) to connect the ONT's Ethernet/LAN port to the router's WAN port. This preserves the high-speed capabilities of fiber .
4. Power On Devices: Turn on the ONT first, wait for the status lights to stabilize, then power on the router. Access the router's admin panel to configure ISP credentials if required .

Tips for Using Splitters with Routers

• Check Split Ratios: Ensure the splitter's output ratio matches your network needs. Unequal splits (e.g., 90/10) can prioritize one device over another .
• Monitor Signal Strength: Use an optical power meter to verify that each output maintains sufficient signal for reliable router performance .
• Avoid Overloading: Do not exceed the recommended number of outputs per splitter, as this can degrade performance .
• Connector Compatibility: Ensure all fiber connectors are compatible (e.g., SC/APC to SC/APC) to prevent signal loss . By combining a properly installed ONT, a compatible router, and a correctly configured splitter, you can efficiently distribute fiber optic internet to multiple devices or locations while maintaining high-speed, low-latency performance.
