Odn passive optical devices

Passive optical devices in the ODN, such as splitters, couplers, and optical fibers, enable signal distribution from the OLT to multiple ONUs/ONTs without requiring power.Overview of ODN

The Optical Distribution Network (ODN) is the passive segment of a Passive Optical Network (PON) that connects the Optical Line Terminal (OLT) at the service provider's central office to multiple Optical Network Units (ONUs) or Optical Network Terminals (ONTs) at the customer premises. The ODN is entirely passive, meaning it does not require electrical power, which reduces operational costs and increases reliability. It typically spans distances of 20–30 km and supports point-to-multipoint topologies, allowing a single fiber from the OLT to serve multiple endpoints through passive devices .

Key Passive Optical Devices

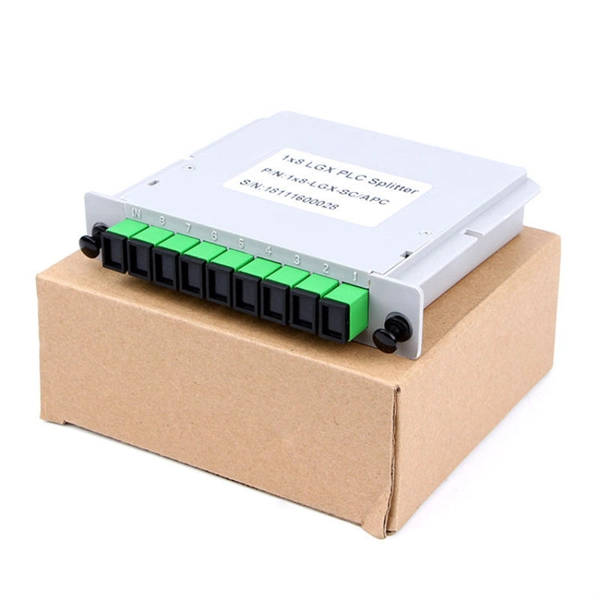

1. Optical Splitters
   • Splitters are the most critical passive devices in the ODN. They divide a single optical signal from the OLT into multiple signals to serve several ONUs/ONTs.
   • Common split ratios include 1:2, 1:4, 1:8, 1:16, 1:32, and 1:64, depending on network design and subscriber density.
   • Splitters are purely passive and do not require power, ensuring low maintenance and high reliability .
2. Optical Couplers
   • Couplers combine or split optical signals in the network. While similar to splitters, couplers are often used for bidirectional signal management or in specialized network configurations.
   • They maintain signal integrity while distributing light efficiently across multiple paths .
3. Optical Fibers
   • Single-mode optical fibers form the backbone of the ODN, carrying high-bandwidth signals over long distances with minimal attenuation.
   • Fibers are categorized into feeder fibers (from OLT to splitter), distribution fibers (from splitter to local areas), and drop fibers (from distribution points to ONUs/ONTs), .
4. Optical Connectors and Splice Points
   • Connectors and splices are passive components that join fiber segments, ensuring low-loss signal transmission.
   • They are essential for network flexibility, maintenance, and expansion.

Functionality in PON

Passive optical devices in the ODN enable a point-to-multipoint architecture, allowing a single OLT port to serve multiple subscribers efficiently. The splitters and couplers distribute downstream signals from the OLT to all ONUs/ONTs, while upstream signals from subscribers are combined back into the feeder fiber. This design reduces the amount of fiber and central office equipment compared to point-to-point networks, optimizing cost and scalability .

Deployment Considerations

• Loss Budget: Each passive device introduces optical loss; careful planning ensures signal strength remains within acceptable limits.
• Topology: Tree and star topologies are common, with splitters strategically placed to balance coverage and performance.
• Reliability: Passive devices are preferred for their durability and minimal maintenance requirements. In summary, splitters, couplers, and optical fibers are the core passive optical devices in the ODN, enabling efficient, scalable, and reliable distribution of optical signals from the OLT to multiple end users without the need for powered equipment .
