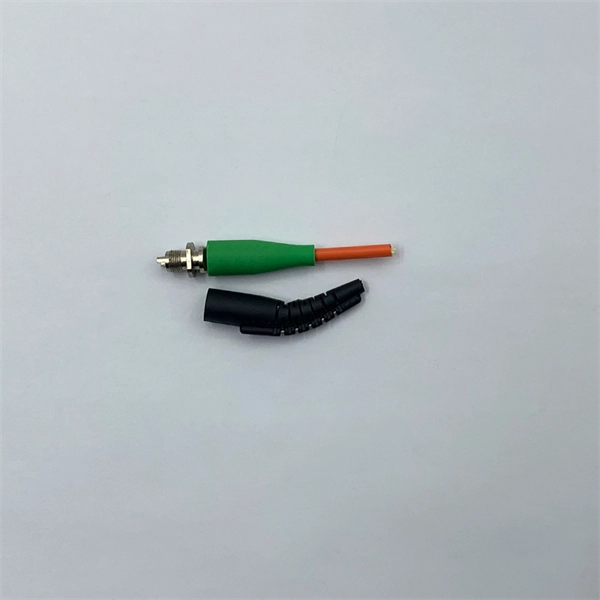

Fiber optic connector has light

Fiber optic connectors transmit light signals efficiently, and when paired with a light source, they enable testing, signaling, or decorative applications.Overview of Fiber Optic Connectors

Fiber optic connectors are mechanical devices that align and join optical fibers, allowing light to pass through with minimal loss or reflection . They are essential for network performance, maintenance, and flexibility, and come in various types depending on the application:

• LC (Lucent Connector): Small 1.25 mm ferrule, push-pull latch, ideal for high-density data centers and SFP transceivers .
• SC (Subscriber Connector): 2.5 mm ferrule, push-pull snap, widely used in FTTH, telecom, and patch panels .
• ST (Straight Tip): 2.5 mm ferrule, bayonet twist-lock, durable for legacy and industrial networks .
• FC (Ferrule Connector): 2.5 mm ferrule, screw-threaded, secure in high-vibration environments like labs or industrial systems .
• MPO/MTP: Multi-fiber connectors for high-density applications, supporting 12–48 fibers, used in data centers and high-speed backbones . Specialized connectors like E2000 or MU may include protective shutters or compact designs for high-performance or space-limited applications .

Fiber Optic Light Sources

To use a fiber optic connector with light, a compatible fiber optic light source is required. These devices inject light into the fiber for testing, troubleshooting, or decorative purposes :

• Visual Fault Locators (VFL): Emit visible red light to detect breaks or faults in fiber cables.
• LED or Laser Light Sources: Provide single-mode or multimode light at wavelengths like 1310 nm, 1550 nm, or 850 nm for testing insertion loss and continuity.
• Decorative Fiber Lighting: RGB or white LED sources can illuminate fiber strands for aesthetic applications, such as star ceilings or signage. Most light sources come with adapters for LC, SC, ST, or FC connectors, ensuring compatibility with standard fiber types .

Applications

1. Network Testing and Maintenance: Light sources paired with connectors allow technicians to verify fiber continuity, measure power loss, and locate faults.
2. Telecommunications and Data Centers: High-density LC or MPO connectors with light sources ensure proper alignment and signal integrity.
3. Decorative Lighting: Fiber optic strands connected to LED light sources create visual effects in homes, commercial spaces, or displays.

Choosing the Right Connector and Light Source

• Connector Type: Match the connector to your fiber type (single-mode or multimode) and application density.
• Polish Type: UPC (blue) for general use, APC (green) for low-reflection applications.
• Light Source Compatibility: Ensure the source supports the connector interface and wavelength required for your application.
• Durability and Environment: For industrial or outdoor use, consider FC or ST connectors for vibration resistance and secure connections . By combining the appropriate fiber optic connector with a compatible light source, you can achieve reliable signal transmission, efficient testing, or visually striking lighting effects.
