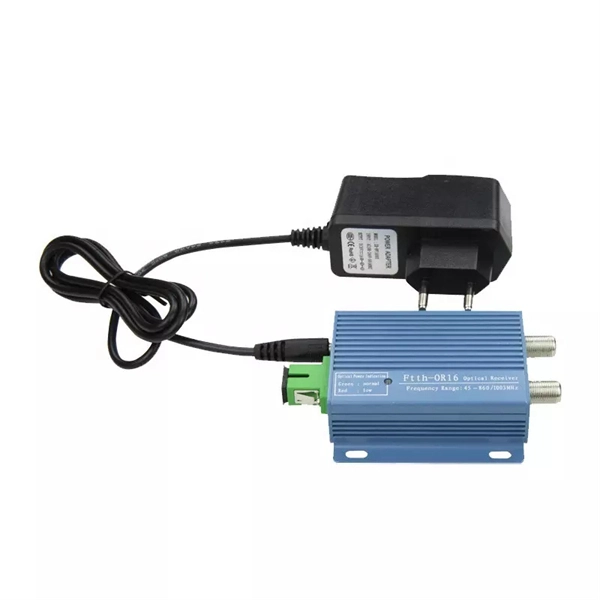

General Single-mode and Dual-mode Fiber Optic Modules

Single-mode fiber modules are optimized for long-distance, high-speed transmission, while dual-mode (or dual-fiber) modules use two fibers for separate transmit and receive channels, offering simpler setup and reliable full-duplex communication.Single-mode vs Multi-mode Fiber Modules

Single-mode (SM) modules use a very narrow core, typically around 8–10 micrometers, allowing only one light mode to propagate. This minimizes modal dispersion, making them ideal for long-distance transmission (up to 10 km or more) and high-speed applications such as 25G, 40G, or 100G links in data centers, telecom backbones, and enterprise WANs . They generally operate at 1310 nm or 1550 nm wavelengths and are more expensive due to their performance and reach . Multi-mode (MM) modules have a larger core, typically 50–62.5 micrometers, allowing multiple light modes to travel simultaneously. This makes them suitable for short-distance applications (up to 550 meters for OM3/OM4 fibers) and lower-speed networks. They usually operate at 850 nm or 1300 nm wavelengths and are cost-effective for intra-building or campus networks . However, multi-mode fibers suffer from modal dispersion, which limits their efficiency at speeds above 25G .

Single-fiber (BiDi) vs Dual-fiber Modules

Single-fiber (BiDi) modules use one fiber for both transmitting and receiving data by employing different wavelengths for each direction. This reduces cabling requirements and saves space, making them ideal for high-density environments . Dual-fiber modules use two separate fibers, one for transmitting and one for receiving. They are easier to install and maintain, providing steady full-duplex communication. Dual-fiber setups are common in traditional network deployments where simplicity and reliability are prioritized .

Key Considerations for Module Selection

1. Distance and Speed: Single-mode is preferred for long distances and high-speed links, while multi-mode is suitable for short distances and cost-sensitive applications .
2. Fiber Compatibility: Modules must match the fiber type (SMF or MMF) to avoid signal loss or link failure .
3. Form Factor: SFP, SFP+, SFP28, QSFP, and other form factors must fit the device ports and support the required data rates .
4. Wavelength: Ensure the module wavelength matches the fiber and network design (e.g., 1310/1550 nm for SM, 850 nm for MM), .
5. Power and Reliability: Lower power consumption and high mean time between failures (MTBF) improve network stability .
6. Scalability: Choose modules that allow future network growth without replacing the entire infrastructure .

Practical Applications

• Single-mode modules: Telecom backbones, metro networks, long-distance data center interconnects, enterprise WANs, and municipal fiber deployments .
• Multi-mode modules: Short-range data center links, campus networks, and intra-building connections .
• BiDi modules: High-density environments where fiber count is limited.
• Dual-fiber modules: Standard full-duplex links with straightforward installation and maintenance . Selecting the right fiber optic module involves balancing distance, speed, fiber type, cost, and future scalability to ensure reliable, high-performance network connectivity.
