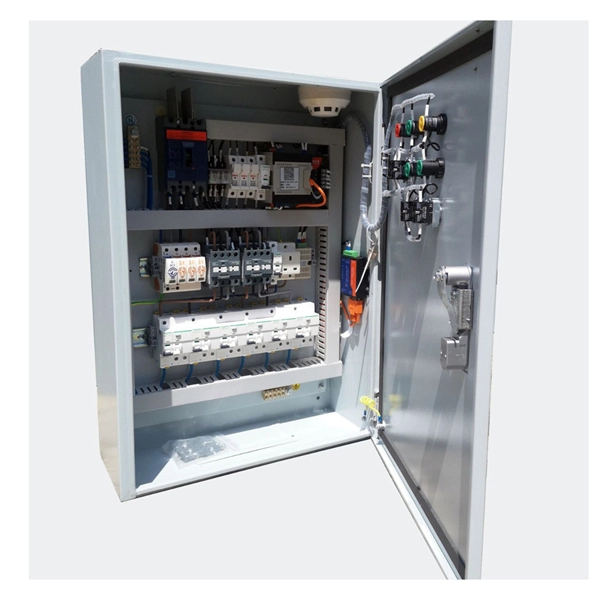

Common grounding terminal of the distribution box

Multiple grounding terminals in a distribution box ensure safety, system stability, and proper fault current dissipation.Purpose of Multiple Grounding Terminals

Grounding terminals in a distribution box serve several critical functions:

• Personnel Safety: They provide a low-resistance path for fault currents, reducing the risk of electric shock by minimizing potential differences between conductive parts and the earth .
• Equipment Protection: Proper grounding protects transformers, circuit breakers, and other equipment from damage caused by lightning strikes, overvoltages, or fault currents .
• System Stability: Grounding stabilizes voltage levels across the distribution system, ensuring protective devices operate correctly and maintaining reliable power delivery .
• Fault Detection: Multiple grounding points help isolate and detect faults quickly, allowing protective devices to function efficiently .

Configuration and Standards

• Connection Method: Each distribution box and controller must be grounded. Typically, a ground wire is attached from a threaded stud at the bottom of the housing to the mounting plate, and then from the mounting plate to a central grounding point .
• Wire Size: In the US, a 10 AWG (5.26 mm²) ground wire is standard, while other markets may require 6 mm² .
• Resistance Requirements: The total ground resistance between all system parts should be less than 0.1 Ohm for effective grounding .
• Multiple Rods: If a single rod exceeds 25 Ohms, additional rods connected with continuous conductors are recommended to maintain low resistance .

Practical Considerations

• Parallel Ground Paths: When multiple grounding wires are used, their resistances combine in parallel, reducing total resistance and improving safety .
• Material Quality: Use corrosion-resistant materials like copper-bonded steel to ensure long-term reliability .
• System Type: In North American distribution systems, a multigrounded neutral is common, which allows the system to operate safely even if one neutral-to-ground connection is lost .

Summary

Using several grounding terminals in a distribution box is essential for safety, equipment protection, and system reliability. Proper installation involves connecting all terminals to a central grounding point, using appropriately sized conductors, and ensuring low-resistance paths. Regular testing and high-quality materials further enhance the effectiveness of the grounding system .
