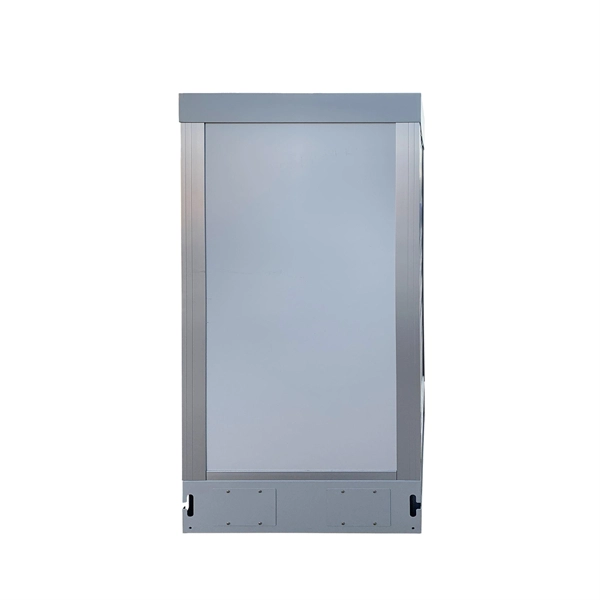

Height of floor-mounted electrical distribution box from the ground

The recommended height for floor-mounted electrical distribution boxes is generally 12 to 16 inches from the finished floor to the center of the box, with adjustments for accessibility and safety.Residential Installations

For typical residential settings, floor-mounted electrical boxes are usually installed 12 to 16 inches above the finished floor to align with standard outlet heights and ensure convenient access for everyday use . This height allows cords to reach appliances without excessive hanging and maintains a clean aesthetic. For wall-mounted distribution boards, a height of 4.5 to 5.5 feet (1.4 to 1.7 meters) is recommended for easy access without bending or stretching .

Accessibility Considerations

For elderly or disabled users, the recommended height for distribution boards is around 1.3 meters (approximately 4.3 feet) from the floor, ensuring that all components are reachable without strain . In general, residential distribution boards should be installed between 1 meter and 1.8 meters from the floor to balance accessibility and safety .

Industrial Installations

In industrial environments, distribution boards with an IP54 protection rating are typically mounted with a maximum height of 1.2 meters for the panel itself, ensuring safe operation and maintenance . Adequate clearance around the panel is required for safe access, as specified by IEC 61439 and BS 7671 standards.

Safety and Compliance

• Maximum operating handle height: NEC specifies that the center of the grip of the highest circuit breaker should not exceed 6 feet 7 inches (2 meters) from the floor to ensure emergency accessibility .
• Moisture protection: Floor-mounted boxes should be raised 2 to 4 inches above the floor to prevent water damage .
• Clear working space: Maintain unobstructed space in front of the panel for safe operation and maintenance .
• Avoid wet or hazardous areas: Install boxes away from sinks, uncovered outdoor areas, or locations prone to water spills .

Summary

• Floor-mounted boxes: 12–16 inches from finished floor to center.
• Wall-mounted distribution boards: 1–1.8 meters from floor; 1.3 meters for elderly/disabled users.
• Industrial panels: Maximum height ~1.2 meters; ensure adequate clearance.
• Safety compliance: Follow NEC, IEC 61439, and BS 7671 standards for accessibility, moisture protection, and working space. By following these guidelines, floor-mounted electrical distribution boxes will be safe, accessible, and compliant with industry standards.
