How to install and connect fiber optic patch panels

Installing and connecting a fiber optic patch panel involves careful planning, proper mounting, and precise fiber cable management to ensure reliable network performance.1. Planning and Preparation

Before installation, assess your network requirements, including fiber type (single-mode or multi-mode), strand count, and future expansion needs . Determine the installation location—rack-mounted, wall-mounted, outdoor, or DIN rail—based on available space and environmental conditions . Gather necessary tools and materials, such as a rackmount fiber enclosure, patch panel, screws, fiber patch cords, and labeling supplies . Label all ports and cables to simplify future maintenance and troubleshooting .

2. Mounting the Patch Panel

• Rack-Mount Panels: Install in a standard 19” or 23” rack, ensuring the panel occupies the correct number of rack units (RU) .
• Wall-Mount Panels: Secure directly to a wall in a well-ventilated area to prevent overheating .
• Outdoor Panels: Ensure the enclosure has a NEMA rating (4 or higher) for protection against weather .
• DIN-Mount Panels: Clip onto a T-35 DIN rail for industrial installations .

3. Fiber Cable Preparation

• Verify that cable lengths are sufficient to reach the patch panel without excessive tension .
• Maintain the minimum bending radius recommended by the manufacturer to prevent signal loss or fiber damage .
• Clean fiber ends using an optical fiber cleaning tool to remove dust or debris before connection .

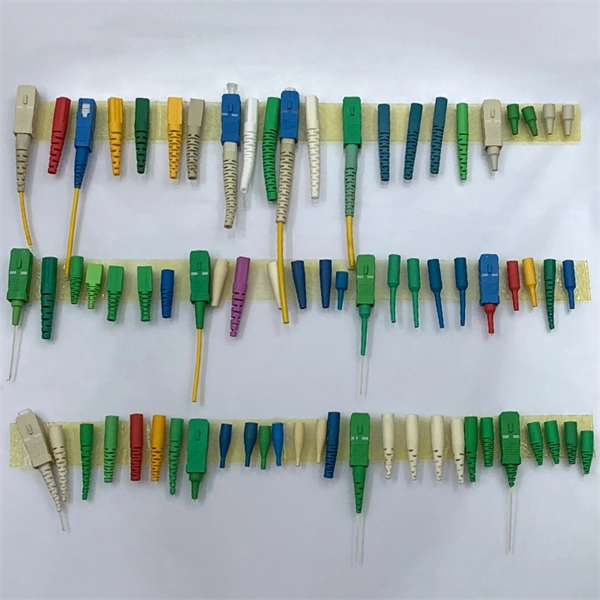

4. Connecting Fiber Cables

• Insert each fiber strand into the corresponding port on the patch panel gently, avoiding excessive force .
• Use fiber patch cords to connect the patch panel ports to network devices or other panels .
• Avoid crossing or overlapping patch cords to reduce the risk of signal interference and physical damage .
• For multi-strand cables, separate fibers into individual strands or pairs and route them neatly within the panel .

5. Testing and Documentation

• After connections, test each fiber link for signal integrity and continuity using an optical power meter or OTDR.
• Document the port assignments, cable routes, and test results for future reference and maintenance .

6. Maintenance Tips

• Keep the patch panel area organized and ventilated to prevent overheating .
• Regularly inspect and clean fiber connectors to maintain optimal performance.
• Plan for future expansion by leaving spare ports and slack in fiber runs . By following these steps, you can ensure a reliable, scalable, and maintainable fiber optic network with minimal downtime and signal loss.
