How to connect a dual-core fiber optic cable with a cold splice

To connect a cold splice to a dual-core fiber optic cable, carefully prepare, align, and secure both fiber cores using a cold splice connector, ensuring low-loss and protected connections.Tools and Materials Needed

• Cold splice connector suitable for dual-core fiber
• Fiber stripper and cleaver
• Lint-free wipes and isopropyl alcohol
• Fiber splice protection sleeves
• Fiber enclosure or splice tray

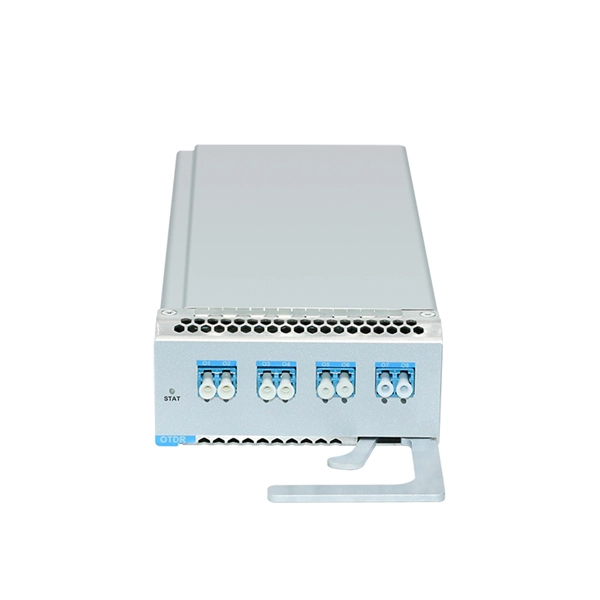

• Optional: OTDR or power meter for testing

Step-by-Step Procedure

1. Install the Cold Splice Connector Place the cold splice connector onto the cable, ensuring the snap rings on both sides are properly buckled and the middle slot is securely snapped down. This provides a stable base for the fibers . 2. Prepare the Fiber Ends

• Strip approximately 3 cm of the fiber coating from each core using a fiber stripper.
• Clean the exposed fiber with lint-free wipes and isopropyl alcohol to remove any dust or contaminants . 3. Cleave the Fibers Use a high-quality fiber cleaver to create a smooth, perpendicular end face on each fiber. A precise cleave is critical for minimizing splice loss . 4. Insert Fibers into the Cold Splice Connector
• Carefully insert each fiber core into the corresponding slot of the cold splice connector.
• Ensure both cores are aligned properly to allow light to pass through with minimal loss . 5. Secure the Splice Snap the connector closed according to the manufacturer's instructions. This mechanically holds the fibers in place and maintains alignment . 6. Protect the Splice Slide a fiber splice protection sleeve over the splice point. Place the spliced fibers inside a fiber enclosure or splice tray to protect against environmental damage and mechanical stress . 7. Verify the Connection Test the spliced fibers using an OTDR or power meter to confirm signal integrity and low insertion loss. Typical mechanical splice loss is around 0.3 dB, while fusion splices can achieve 0.01 dB .

Best Practices

• Handle fibers carefully to avoid breakage or contamination.
• Dispose of fiber scraps safely to prevent injury.
• Work in a clean, controlled environment to reduce dust and debris.
• Follow manufacturer instructions for the specific cold splice connector used. By following these steps, you can achieve a reliable, low-loss connection for a dual-core fiber optic cable using a cold splice connector, suitable for both field and indoor installations .
