Fiber Distribution Box ODF

A Fiber Distribution Box (FDB) distributes optical signals to multiple subscribers, while an Optical Distribution Frame (ODF) manages, terminates, and protects backbone fiber connections in central offices or data centers.Fiber Distribution Box (FDB)

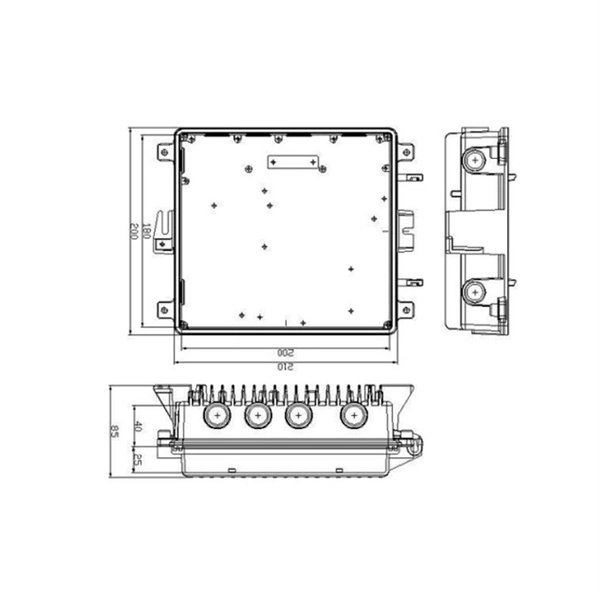

A Fiber Distribution Box is an intermediate node in fiber networks, typically installed in building corridors, stairways, outdoor poles, or shared community spaces. Its main purpose is to distribute fiber from feeder cables to multiple subscriber access points. FDBs provide:

• Fiber splicing and termination for incoming and outgoing fibers
• Slack storage and mechanical protection to prevent bending or stress on fibers
• Adapter panels for connecting optical jumpers to subscriber lines
• Indoor and outdoor deployment options, often with dustproof and waterproof designs for durability and security FDBs are compact, versatile, and designed for FTTH/FTTB networks, bridging the gap between the central office ODF and the end-user fiber terminal box .

Optical Distribution Frame (ODF)

An Optical Distribution Frame is a centralized fiber management system used in telecom rooms, data centers, or central offices. It serves as the backbone hub for fiber networks, providing:

• Splicing management with organized splice trays
• Fiber termination using LC, SC, or MPO adapters
• Cable routing and slack management to maintain bend-radius compliance
• Protection and reliability for long-term network stability ODFs are high-capacity, scalable structures that handle dense fiber connections, simplify maintenance, and support network expansion. They are typically rack-mounted or wall-mounted and are essential for managing backbone fibers connecting OLTs, distribution cables, and splitter boxes .

Key DifferencesFeatureFiber Distribution Box (FDB)Optical Distribution Frame (ODF)LocationIntermediate points, corridors, poles, or community spacesCentral office, data center, telecom roomFunctionDistributes fiber to multiple subscribersManages, terminates, and protects backbone fibersCapacitySmall to medium (1–24 cores typical)High-density, scalable for hundreds of fibersDeploymentIndoor/outdoor, wall or pole-mountedRack-mounted or wall-mounted in structured environmentsRole in NetworkConnects feeder cables to subscriber linesConnects OLT/backbone to distribution points and ensures structured fiber managementComplementary Use

In a typical FTTH network:

1. ODF in the central office manages backbone fibers and connects to splitter or distribution boxes.
2. FDB distributes the optical signal from the ODF or splitter to individual subscribers.
3. Fiber Terminal Box at the end-user site provides the final termination and connection to ONT/ONU devices . By using FDBs and ODFs appropriately, operators can ensure efficient, scalable, and reliable fiber network deployment.
