Fiber Optic Socket Panel Wiring Steps

Fiber optic socket panel wiring involves preparing the incoming fiber, splicing to pigtails, securing fibers in adapters or splice trays, and maintaining proper routing to ensure minimal signal loss.Components Overview

A typical fiber optic socket panel or wall outlet includes:

• Faceplate: Mounts flush on the wall and provides access to the fiber connector.
• Adapter: Holds the fiber connector (e.g., SC/APC, LC) and ensures proper alignment.
• Back Box: Conceals slack fiber and splices, protecting the fiber from physical damage.
• Pigtail: Pre-terminated fiber linking the socket or panel to the Optical Network Terminal (ONT) or patch panel .

Wiring and Installation Steps

1. Mount the Back Box or Panel: Cut the wall opening or secure the rackmount panel in the designated location. Ensure it is stable and allows sufficient space for fiber routing .
2. Prepare the Incoming Fiber:
   • Strip the outer jacket of the fiber cable (typically about 30 cm for wall sockets or 1 meter for patch panels).
   • Clean the exposed fiber with alcohol to remove dust and contaminants .
3. Secure the Fiber:
   • Place the fiber jacket in the clamp or cable holder to prevent movement.
   • Attach the strength member (if present) to the screw or anchor point to relieve tension on the fiber .
4. Splicing to Pigtails:
   • Splice the incoming fiber to the pre-terminated pigtail using fusion or mechanical splicing.
   • Insert the splice into the splice tray slots, ensuring each slot accommodates the splice sleeve .

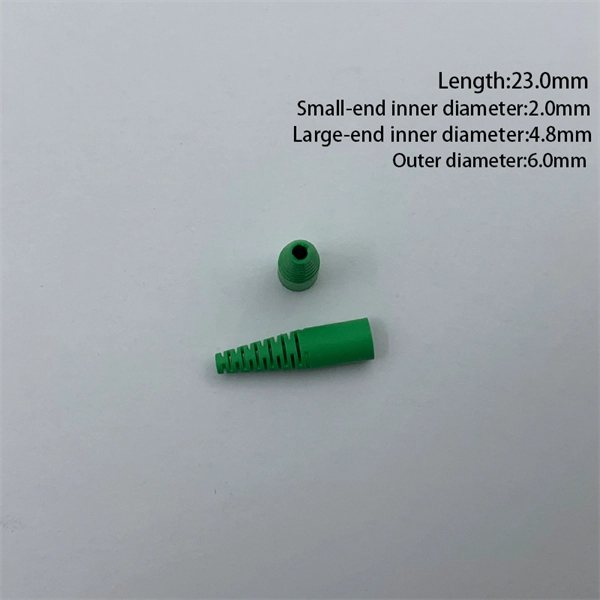

5. Connector Termination:
   • Insert the pigtail connector into the adapter on the panel or wall socket.
   • Ensure proper alignment and avoid bending the fiber beyond its minimum bend radius to prevent signal loss .
6. Routing and Securing:
   • Route the fiber neatly along the panel or back box, using cable ties or guides to prevent tangling.
   • Avoid loops or sharp bends, as these can degrade signal quality .
7. Testing:
   • After installation, test the fiber connection for continuity, insertion loss, and reflection to ensure optimal performance.

Best Practices

• Use APC connectors for GPON networks to minimize reflection loss (-60 dB) and UPC connectors for general LAN applications (-50 dB) .
• Maintain proper bend radius and avoid looping fibers unnecessarily.
• Keep the installation area clean to prevent dust contamination on fiber end-faces.
• Label fibers and adapters clearly for easier maintenance and troubleshooting. By following these steps, a fiber optic socket panel can be wired efficiently, ensuring high-speed, low-loss connectivity from the incoming fiber to the ONT or network equipment.
