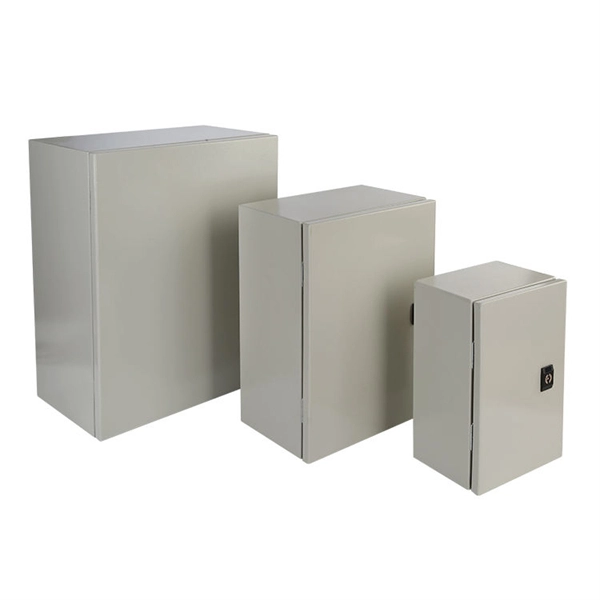

How many cores of cable are typically used in a distribution box

Typically, 3-core, 4-core, or 5-core cables are used in distribution boxes, depending on the system type and safety requirements.Core Selection Based on System Type

• Single-phase systems: Usually employ 2-core or 3-core cables. A 2-core cable carries the phase and neutral when the protective earth is shared, while a 3-core cable is used when the neutral and protective earth are separate .
• Three-phase systems: Commonly use 3-core, 4-core, or 5-core cables. A 3-core cable carries the three phases in a balanced system without a neutral. A 4-core cable includes three phases plus a neutral, often used in low-voltage three-phase four-wire systems. A 5-core cable adds a separate protective earth conductor, which is important for unbalanced loads or higher safety requirements .

Factors Influencing Core Number

1. Load type and balance: Balanced three-phase loads may only require 3 cores, while unbalanced loads or systems with significant neutral current require 4 or 5 cores .
2. Voltage level: Low-voltage systems (up to 1 kV) typically use multi-core cables, while higher voltage systems may use single-core cables for each phase .
3. Safety and grounding: Systems requiring independent protective earth conductors or anti-interference grounding often use 5-core cables .
4. Future expansion: Extra cores may be included for scalability or spare capacity in distribution boxes .

Practical Examples

• Residential distribution box: Often uses a 4-core cable (three phases + neutral) if the system is three-phase, or a 3-core cable for single-phase with separate earth .
• Industrial or high-safety installations: Prefer 5-core cables to ensure separate neutral and protective earth conductors, reducing the risk of electrical faults . In summary, the number of cable cores in a distribution box is determined by the phase configuration, load balance, voltage, and safety requirements, with 3, 4, or 5 cores being the most common choices.
