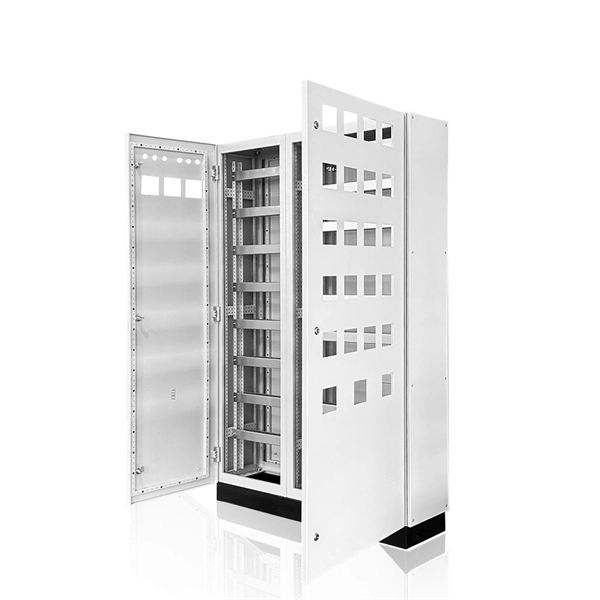

Wiring and wiring through the distribution box door

All metallic parts of a distribution box, including the door, must be properly grounded, and wiring should be neatly arranged to avoid contact with the door and ensure safety.Grounding the Door

Even if the distribution box body is grounded, the metal door itself must also be bonded to ground. This prevents static discharge and protects against accidental contact with live wires inside the box, which could energize the door and pose a shock hazard. NEC 250.148 mandates that all metallic parts of electrical enclosures, including doors, be connected to the grounding system to ensure safety for anyone touching the enclosure .

Wiring Management Near the Door

• Keep wires clear of the door hinge and closing path to prevent pinching or abrasion.
• Use cable ties or wire ducts to route wires neatly along the sides or back of the enclosure, leaving sufficient space for the door to open fully .
• Maintain proper insulation on all conductors, and ensure no exposed wires are near the door edges.
• Allow space for heat dissipation; avoid tightly bundling wires against the door, which can trap heat and reduce breaker efficiency .

Connection and Safety Checks

• Connect phase, neutral, and ground wires to their respective terminals, following the principle: phase to phase, neutral to neutral, ground to ground .
• After wiring, perform insulation resistance and continuity tests to confirm that all connections are secure and that the door grounding is effective .
• Label all circuits clearly to facilitate maintenance and reduce the risk of accidental contact with live parts .

Best Practices

• Use UL/CE-certified components and follow local electrical codes for installation .
• Consider modular designs or wire ducts to make future upgrades easier without disturbing the door wiring .
• Schedule regular inspections to ensure that wires remain secure and the door grounding remains intact . By following these practices, you ensure that the distribution box door is safe, code-compliant, and that wiring around it is organized, reducing the risk of electrical hazards.
