How to connect an optical module to fiber optic cable 6

To connect an SFP optical module to a fiber optic cable, ensure compatibility, clean the connectors, insert the module and cable carefully, and verify the link.Step-by-Step Guide

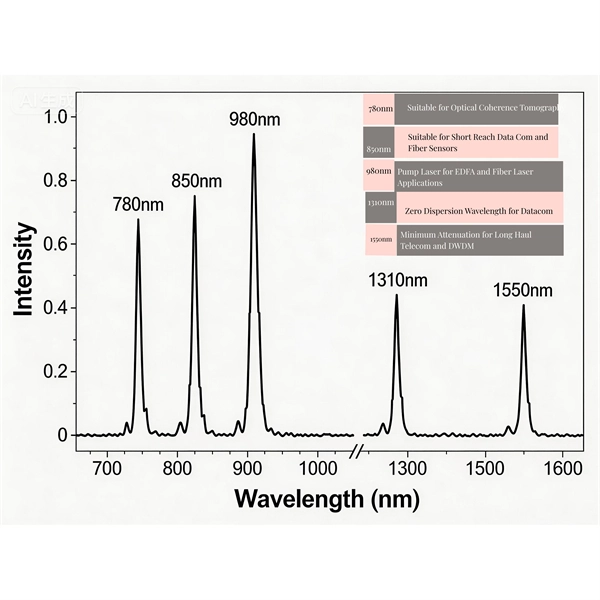

1. Verify Compatibility Ensure the SFP module matches the fiber type (single-mode or multimode), wavelength, transmission distance, and connector type of your fiber optic cable and network equipment ( ). 2. Prepare the Components

• Remove dust caps from the SFP module and fiber optic cable connectors.
• Clean the fiber end faces using specialized fiber cleaning tools to prevent signal loss ( ). 3. Insert the SFP Module
• Align the keyed notch on the SFP module with the slot on the network device (switch, router, or media converter).
• Gently insert the module until it clicks into place, ensuring it is fully seated without forcing it ( ). 4. Connect the Fiber Optic Cable
• Inspect the fiber connector for dirt or damage.
• Align the key on the fiber connector with the SFP module slot.
• Insert the connector gently until it clicks or locks in place. If the SFP has a lock tab, engage it to secure the cable ( ). 5. Verify the Connection
• Check the TX/RX polarity: the transmit (TX) side of one device should connect to the receive (RX) side of the other device.
• Use a power meter or visual fault locator to confirm proper alignment and signal transmission.
• Observe the Link LED on the network device to ensure the connection is active ( ). 6. Secure the Cable
• Route and secure the fiber optic cable to prevent accidental disconnection or bending beyond the recommended radius ( ).

Safety and Best Practices

• Handle SFP modules and fiber cables carefully to avoid damage.
• Avoid touching the fiber end face and always use protective caps when not in use.
• Be aware of laser safety; most SFP modules are Class 1 and safe under normal operation, but avoid direct eye exposure ( ). Following these steps ensures a reliable, high-performance optical connection suitable for data centers, enterprise networks, or telecommunications applications.
