Uplink optical port of the switch

An optical uplink port on a switch is designed to connect the switch to higher-level network devices using fiber, enabling high-speed data transfer and network expansion.What is an Uplink Port?

An uplink port is a switch port specifically intended to connect to other network devices such as switches, routers, or core network equipment, rather than end-user devices like computers or printers . Uplink ports are often higher-speed interfaces and can handle aggregated traffic from multiple devices, making them ideal for linking different layers of a network hierarchy, such as access, distribution, and core layers .

Optical Uplink Ports

Optical uplink ports typically use SFP (Small Form-factor Pluggable) or SFP+ modules, which allow fiber connections for longer distances and higher bandwidth compared to standard copper ports . These ports can support speeds from 1 Gbps up to 10 Gbps or more, depending on the switch model and module type . Fiber uplinks are preferred in enterprise or data center environments where high-speed, low-latency, and long-distance connections are required.

Differences Between Uplink and Normal Ports

• Purpose: Uplink ports connect switches to other network devices; normal (downlink) ports connect end-user devices .
• Speed: Uplink ports often support higher speeds (e.g., 10 Gbps) than normal ports (commonly 1 Gbps), .

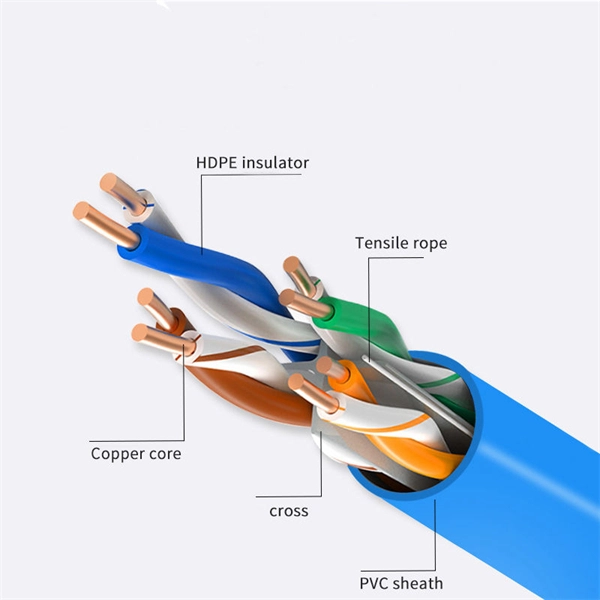

• Cable Type: Uplink ports can use fiber or copper via SFP/SFP+ modules, while normal ports are usually RJ45 copper .
• Cabling: Uplink ports eliminate the need for crossover cables when connecting two switches, as they handle transmit/receive pin alignment automatically .

Practical Usage

To expand a network using optical uplinks:

1. Connect the uplink port of one switch to the uplink or normal port of another switch using an appropriate fiber module and cable .
2. Ensure module compatibility: Match SFP/SFP+ types and supported speeds between switches .
3. Use uplink ports for aggregation: This preserves normal ports for end devices and allows higher throughput between switches .
4. Optional combo ports: Some switches offer RJ45/SFP+ combination uplink ports, providing flexibility for either copper or fiber connections .

Key Considerations

• Bandwidth needs: Choose uplink ports with sufficient speed to handle aggregated traffic.
• Distance: Fiber uplinks are suitable for long-distance connections, while copper is limited to shorter runs.
• Network design: Use uplink ports to connect access switches to distribution or core switches, ensuring scalable and efficient network topology . In summary, optical uplink ports are essential for connecting switches over fiber, providing higher speeds, longer reach, and efficient traffic aggregation, while normal ports remain dedicated to connecting end-user devices. Proper use of uplink ports ensures scalable, high-performance network infrastructure.
