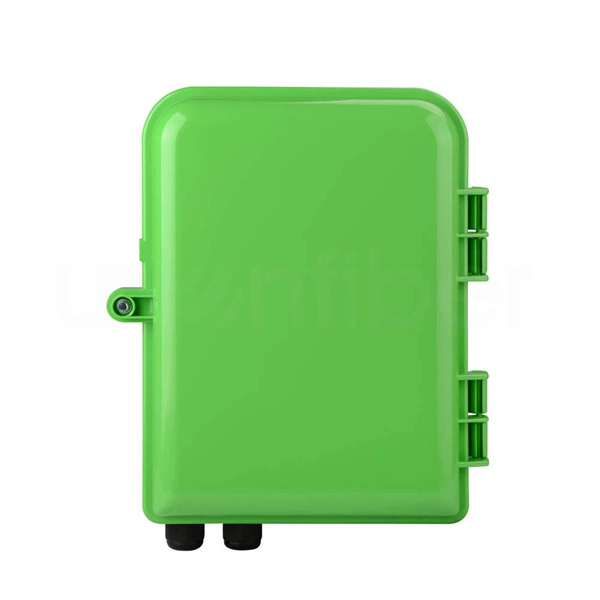

The function of a simple fiber optic fusion splice box

Optical network knowledge brief Published 26 Jan 2025

Prepared for preliminary research by the COETZER OPTICAL knowledge desk. Confirm compatibility, loss budgets and installation requirements against current standards and product documentation.

A fiber optic fusion splice box is designed to protect, organize, and manage spliced fiber optic cables, ensuring reliable, low-loss connections in a network.Core Function

A fiber optic fusion splice box serves as a secure enclosure for fiber splices, where two fiber optic cables are permanently joined using fusion splicing. Fusion splicing uses an electric arc to melt and fuse the fiber ends, creating a near-seamless connection with minimal signal loss and high reliability, which is critical for high-speed, long-distance networks .

Protection and Organization

The box protects delicate spliced fibers from environmental factors such as dust, moisture, and mechanical stress, which could otherwise degrade signal quality . Inside the box, splice trays hold the fibers in organized loops, providing strain relief and preventing bending or damage. This organization also simplifies maintenance and future network modifications .

Connectivity and Flexibility

Fiber optic fusion splice boxes often include removable splice cassettes and front panels with connectors, allowing easy integration with other network components and flexible routing of fibers . They support both singlemode and multimode fibers and can accommodate various fiber counts, commonly 6, 12, or 24 splices, depending on the design . Some hybrid boxes also support copper connections and power supply for specialized applications .

Applications

These boxes are widely used in data centers, telecom facilities, industrial networks, and outdoor environments, including fiber-to-the-home (FTTH) deployments. They are suitable for rack-mounted or wall-mounted installations and can be designed for harsh or hard-to-access locations, ensuring long-term network reliability .

Summary

In essence, a fiber optic fusion splice box ensures the integrity, organization, and protection of fiber optic splices, enabling high-performance, low-loss data transmission while simplifying installation, maintenance, and network scalability .
