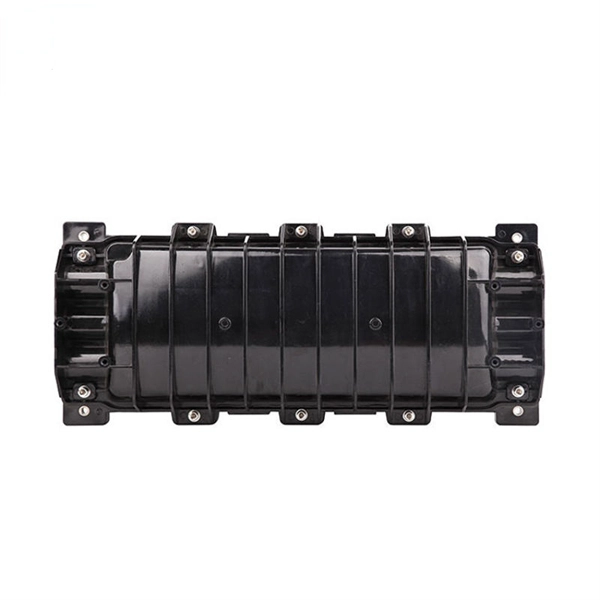

8-core single-mode fiber optic splicing sequence

Fusion splicing is the preferred method for joining single-mode eight-core fibers, offering low insertion loss and high reliability.Overview of Fusion Splicing

Fusion splicing permanently joins fiber ends by melting them together, creating a stable, low-loss connection. For single-mode fibers, precise alignment is critical due to the small core diameter (typically 9/125 µm), which makes them sensitive to misalignment . Typical insertion loss for single-mode fusion splices is below 0.05 dB, ensuring minimal signal degradation .

Equipment for Multi-Core Splicing

For eight-core single-mode fibers, mass fusion splicers are recommended. These devices can splice multiple cores simultaneously, improving efficiency and consistency. For example, Fujikura offers 16-core and 4-core mass fusion splicers, capable of handling multi-core fibers including eight-core configurations . Key features to look for include:

• Core alignment fusion splicer: Aligns each fiber core precisely for minimal loss.
• Cladding alignment splicer: Useful for portability but may require more careful handling.
• Automatic fiber clamping and cover closing: Reduces handling errors and improves splice quality.
• Support for specialty fibers: Including polarization-maintaining, thin-diameter, and multi-core fibers .

Splicing Procedure

1. Fiber Preparation: Strip the outer jacket and coating, clean the fibers, and cleave each core perpendicularly or at a slight angle if reflection suppression is needed .
2. Alignment: Use the splicer's imaging system to align all eight cores simultaneously. Core-to-core alignment is critical for single-mode fibers to minimize insertion loss .
3. Fusion: The splicer applies an electric arc to melt the fiber ends together. Modern splicers automatically adjust arc parameters based on fiber type and diameter .
4. Protection: Apply a splice protector sleeve to reinforce the joint and prevent mechanical damage. For armored cables, ensure the steel armor is properly managed to avoid stress on the fibers .
5. Testing: Measure insertion loss and return loss to verify splice quality. Losses should remain below 0.05 dB per core for single-mode fibers .

Considerations for Eight-Core Single-Mode Fibers

• Cable Type: Single-tube, steel-armored designs are common for durability and long-distance transmission .
• Core Spacing: Ensure the splicer can accommodate the specific core layout of the eight-core fiber.
• Environmental Factors: Temperature, humidity, and vibration can affect splice quality; use splicers with environmental compensation features .
• Skill Level: Multi-core splicing requires trained personnel; manufacturers often provide training programs to ensure proper technique . By following these procedures and using appropriate mass fusion splicing equipment, high-quality, low-loss splices for single-mode eight-core fibers can be reliably achieved, supporting long-distance and high-bandwidth applications .
