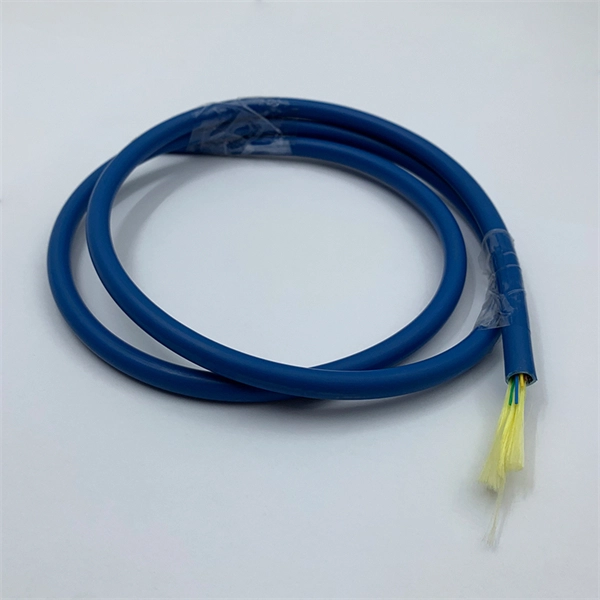

What should be installed in a single-mode 24-core optical cable

Optical network knowledge brief Published 04 Sep 2025

Prepared for preliminary research by the COETZER OPTICAL knowledge desk. Confirm compatibility, loss budgets and installation requirements against current standards and product documentation.

A single-mode 24-core optical cable should be terminated with appropriate connectors, spliced or patched into panels, and installed with proper protection to ensure long-distance, high-bandwidth performance.Core Components to Install

1. Connectors: Each of the 24 fibers in the cable can be terminated with single-mode connectors such as LC, SC, or FC types, depending on the network equipment and patch panel design. LC connectors are commonly used in high-density data centers due to their compact size, while SC connectors are often used in telecom and backbone networks . 2. Patch Panels and Distribution Frames: The fibers should be routed into fiber optic patch panels or distribution frames. These panels organize the 24 fibers, provide strain relief, and allow easy access for future connections or maintenance. Panels may include splice trays for fusion or mechanical splicing . 3. Splicing: For long-distance runs or when connecting to existing fiber infrastructure, fusion splicing is recommended to minimize signal loss. Mechanical splicing can also be used for temporary or less critical connections. Each fiber should be carefully cleaned and aligned to maintain low attenuation . 4. Cable Protection: Depending on the installation environment, the cable may require armored protection for outdoor or industrial sites, or tight-buffered or loose-tube configurations for indoor routing. Outdoor cables often include gel-filled tubes or water-blocking materials to prevent moisture ingress, while indoor cables may use LSZH jackets for fire safety . 5. Routing and Bend Radius: Maintain a minimum bending radius of at least 30 times the cable diameter to prevent micro-bending losses. For a 10 mm diameter cable, this means a 300 mm radius. Proper routing through conduits, trays, or racks ensures mechanical stress is minimized . 6. Testing and Certification: After installation, each fiber should be tested for insertion loss, return loss, and continuity using an OTDR (Optical Time-Domain Reflectometer) or power meter to ensure signal integrity over the intended distance .

Summary

A single-mode 24-core optical cable installation involves:

  • Terminating fibers with LC, SC, or FC connectors
  • Organizing fibers in patch panels or splice trays
  • Using fusion or mechanical splicing for connections
  • Protecting the cable with armoring, gel-filled tubes, or LSZH jackets
  • Maintaining proper bend radius and routing
  • Performing testing and certification to ensure performance Following these steps ensures the cable delivers high-bandwidth, long-distance performance with minimal signal loss and allows for future network expansion .
