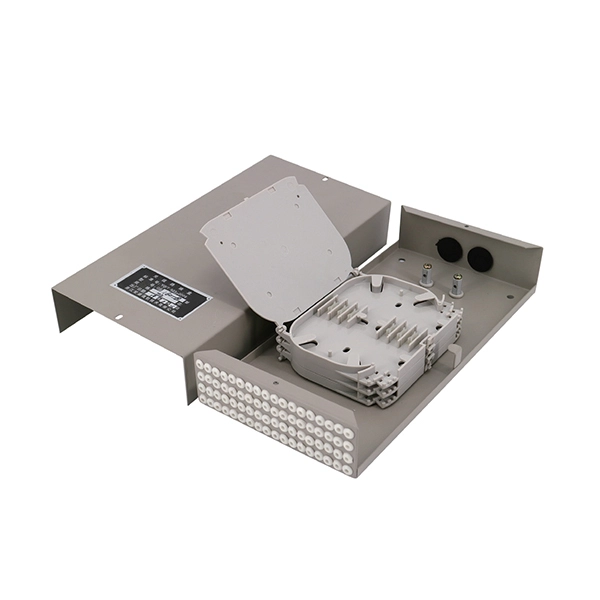

Low-loss Customization Process for Invisible Patch Cords in Data Center Interconnects

Low-loss invisible patch cords are achieved through precision connector design, strict manufacturing control, and rigorous optical testing to ensure minimal insertion loss and high signal integrity in high-density data center interconnects.Key Principles of Low-Loss Patch Cord Customization

1. Connector and Fiber Alignment Design The performance of a patch cord is fundamentally determined by fiber alignment accuracy, ferrule geometry, and end-face quality. MPO/MTP connectors, commonly used in high-density DCIs, require precise multi-fiber alignment to minimize insertion loss. Optimized connector geometry can reduce average insertion loss by over 30% compared to conventional multi-fiber connectors, ensuring consistent fiber-to-fiber contact across all channels, especially in 12-, 24-, or 48-fiber configurations . 2. Manufacturing Precision and Quality Control Low-loss performance is not only a design goal but also a manufacturing outcome. Variability in fiber positioning, polishing pressure, or inspection standards can lead to inconsistent performance. Leading manufacturers implement ISO 9001-compliant quality management systems, advanced polishing techniques, and automated inspection to ensure each patch cord meets strict insertion loss specifications before delivery . Zirconia ceramic sleeves are often used to maintain precise alignment and stable low-loss transmission. 3. Rigorous Optical Testing Customized low-loss patch cords undergo comprehensive testing, including:

• Insertion Loss (IL) and Return Loss (RL) measurement to verify minimal attenuation and reflections.
• 3D interferometric end-face metrology to confirm connector geometry and fiber height.
• Polarity verification to ensure correct Tx/Rx alignment in multi-fiber assemblies.
• OTDR/OFDR testing for detecting discrete event losses and reflections, particularly in short-reach DCI links . Bidirectional averaging is used to compensate for connector mating asymmetries, and reference calibration ensures a “zero-loss” baseline for accurate measurement. 4. Material and Fiber Selection High-performance patch cords often use OM4/OM5 multimode fibers or low-attenuation single-mode fibers, combined with bend-insensitive designs to maintain signal integrity in dense cabling environments. Color-coded connector sleeves and modular cassettes simplify identification and management in high-density racks . 5. Deployment Considerations Invisible or semi-hidden patch cords are designed for high-density, front-accessible deployment, often with tool-less installation and modular cassettes. This reduces physical clutter, minimizes handling errors, and maintains low insertion loss across multiple cascaded connections in hyperscale or enterprise DCIs . Pre-terminated MPO trunks and MTP-LC cassettes enable plug-and-play installation, supporting 400G and 800G networks with minimal latency and zero packet loss.

Benefits of Low-Loss Customization

• Enhanced Network Performance: Maintains optical budget margins and reduces retransmission risk.
• Extended Transmission Reach: Supports high-speed 40G, 100G, 400G, and beyond without additional active equipment.
• Operational Efficiency: Simplifies installation, maintenance, and upgrades in high-density environments.
• Scalability: Supports future-proof spine-leaf architectures and AI-driven workloads . By integrating precision design, controlled manufacturing, and rigorous testing, low-loss invisible patch cords ensure reliable, high-speed interconnects in modern data centers while maintaining a clean, high-density cabling footprint.
