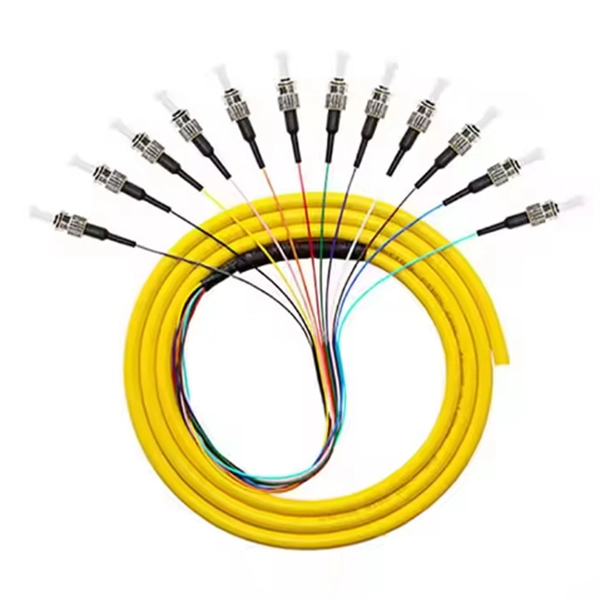

Technical Requirements and Standards for Pigtail Sheaths

Pigtail sheaths must provide mechanical protection, maintain fiber integrity, and comply with optical and environmental standards, typically featuring 0.9 mm tight buffer or 2–3 mm cordage with PVC, OFNP, or LSZH jackets.Fiber and Buffer Specifications

Pigtail sheaths are designed to protect the fiber while allowing easy termination and splicing. Common configurations include 900 µm tight-buffered fibers for high-density splicing and 2.0–3.0 mm cordage for additional mechanical protection and handling ease . The buffer ensures the fiber is shielded from microbending and physical stress, while maintaining a minimum bending radius to prevent signal loss.

Jacket Material

The outer sheath or jacket provides environmental and mechanical protection. Typical materials include:

• PVC: Standard, cost-effective, suitable for indoor applications.
• OFNP (Optical Fiber Non-conductive Plenum): Flame-retardant, suitable for plenum spaces.
• LSZH (Low Smoke Zero Halogen): Reduces toxic fumes in case of fire, ideal for indoor installations .

Mechanical and Optical Performance

Pigtail sheaths must support:

• Insertion loss ≤ 0.2 dB and return loss optimized for minimal reflection .
• Proof test stress of 100 kpsi to ensure fiber durability .
• Bending loss limits, e.g., ≤ 0.5 dB for 100 turns at 75 mm diameter, to maintain signal integrity .
• Core/cladding concentricity and coating concentricity errors within tight tolerances (≤ 1.5 µm for core/cladding, ≤ 12 µm for coating/cladding) to ensure precise alignment in connectors .

Connector Compatibility

Pigtail sheaths must accommodate standard connectors such as LC, SC, ST, FC, LSH, and support both UPC and APC polish types . The sheath should allow secure clamping in the connector housing to prevent stress on the fiber core and maintain repeatable mating/unmating performance .

Environmental and Application Considerations

Sheaths should withstand:

• Temperature variations typical of indoor and outdoor installations.
• Mechanical stress during handling, installation, and splicing.
• Vibration and shock during transport and deployment . Applications include FTTH/FTTX, CATV, LAN/WAN networks, data centers, and optical distribution frames, where pigtail sheaths ensure reliable optical performance and ease of network maintenance .

Summary

A high-quality pigtail sheath combines mechanical protection, optical performance, and environmental resilience. Key technical requirements include:

• 0.9 mm tight buffer or 2–3 mm cordage.
• PVC, OFNP, or LSZH jacket.
• Low insertion and return loss.
• Proof test stress ≥ 100 kpsi.
• Controlled bending radius and concentricity tolerances.
• Compatibility with standard fiber optic connectors and polish types. These specifications ensure durable, high-performance fiber optic connections suitable for modern high-speed networks.
