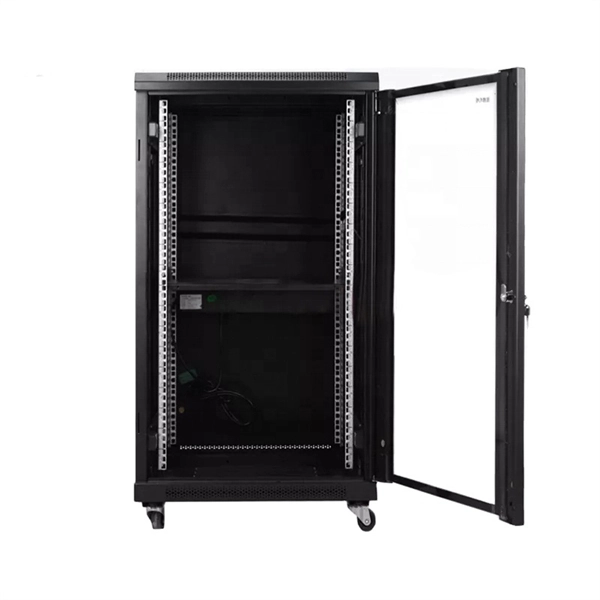

Structure and function of fiber optic distribution box

A fiber optic distribution box is a compact, protective enclosure that organizes, terminates, and distributes optical fibers while safeguarding them from environmental and mechanical damage.Core Structure

A typical fiber optic distribution box consists of the following main components:

• Outer Shell/Enclosure: Made from weather-resistant materials such as high-grade plastic or metal, the shell provides mechanical protection and environmental sealing (IP53 or higher) against dust, moisture, and temperature fluctuations (-40℃ to +60℃) for outdoor or indoor use .
• Internal Frame and Support: The internal structure includes a supporting frame that holds fiber trays, adapters, and splitters securely. It ensures proper routing and prevents excessive bending of fibers, which could cause signal loss .
• Splice Trays or Holders: These trays organize and protect fiber splices, whether mechanical or fusion splices. They maintain the minimum bend radius and allow for easy access during maintenance .
• Fiber Adapters and Connectors: The box houses adapters (SC, LC, or other types) to connect incoming and outgoing fibers. These adapters enable flexible distribution and connection to optical devices or branch cables .
• Splitter Modules: In FTTH or FTTx networks, optical splitters (1:8, 1:16, etc.) can be integrated into the box to divide signals efficiently to multiple subscribers .
• Fiber Storage and Slack Management: Dedicated areas store excess fiber length, ensuring organized routing and preventing fiber damage. These areas are often labeled for easy identification .
• Fixing Devices and Cable Entry Points: The box includes cable clamps, grommets, or fixing devices to secure incoming and outgoing cables, providing strain relief and insulation between metal components and the enclosure .
• Doors and Closures: Secure doors with latches or locks allow easy access for maintenance while preventing unauthorized entry and environmental exposure .
• Mounting Features: Wall-mount or pole-mount options with slots or threaded holes enable secure installation in various network environments .

Functional Considerations

• Modularity: Many boxes support modular installation of splitters, pigtails, and adapters, allowing network expansion and simplified maintenance .
• Environmental Protection: Ventilation slots or moisture-resistant designs prevent heat buildup and condensation inside the box .
• Labeling and Documentation: Color-coded fibers, labeled trays, and included manuals facilitate identification, routing, and troubleshooting . In summary, the fiber optic distribution box is a passive but critical network component that combines mechanical protection, organized fiber management, and flexible connectivity to ensure reliable optical signal distribution in both access and backbone networks .
