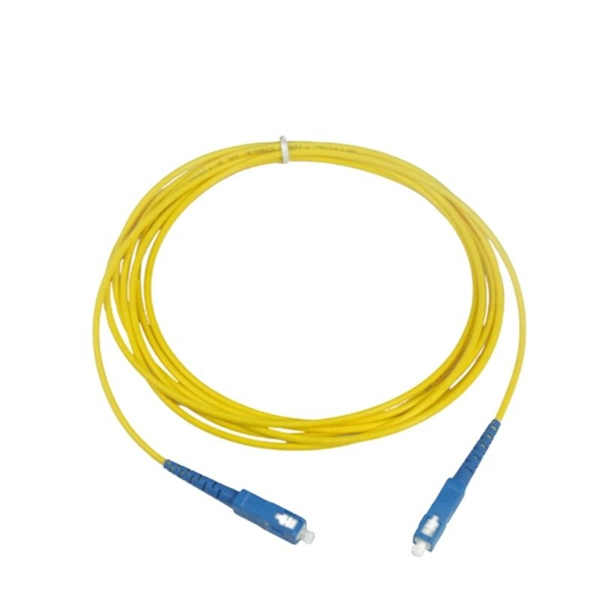

How to connect a dual-core fiber optic cable

A 2-core fiber optic cable can be connected using either fusion splicing or mechanical connectors, ensuring proper alignment, cleaning, and testing for optimal signal performance.Tools and Materials Needed

• Fiber cleaver: For precise cutting of fiber ends.
• Fusion splicer (optional): For permanent splicing of fibers.
• Mechanical splice or connector kit: If fusion splicing is not available .
• Safety equipment: Gloves and safety glasses to protect against glass shards .
• Cleaning tools: Alcohol wipes or fiber cleaning kits to remove dust and debris .
• Optical testing tools: Visual fault locator or OTDR to verify connection integrity .

Step-by-Step Connection Process1. Prepare the Cable

• Strip the outer jacket carefully to expose the two fiber cores.
• Remove the protective coating from each fiber using a fiber stripper.
• Clean the fibers thoroughly to remove any dust or oils .

2. Choose a Connection Method

Fusion Splicing (Permanent Connection)

• Align the two fiber cores in a fusion splicer.
• The splicer fuses the fibers using an electric arc, creating a low-loss permanent joint.
• Protect the splice with a heat-shrink sleeve or splice protector . Mechanical Splicing (Without Fusion Machine)
• Insert each fiber into a mechanical splice or connector, ensuring precise core alignment.
• Lock the fibers in place according to the connector instructions.
• This method is suitable for small-scale or temporary installations .

3. Connect to Devices

• Insert the terminated fiber ends into the appropriate ports on your ONT, router, or switch.
• Ensure the connector type (e.g., SC/APC, SC/UPC, LC) matches the device port .
• Avoid bending the fiber beyond its minimum bend radius to prevent signal loss .

4. Test the Connection

• Use a visual fault locator or OTDR to check for breaks, misalignment, or excessive attenuation .
• Verify that both cores are transmitting signals correctly.

5. Cable Management

• Secure excess cable with velcro straps or cable organizers.
• Avoid tight loops or tension that could damage the fibers .

Additional Tips

• For single-mode 2-core cables, ensure long-distance alignment and minimal loss.
• For multi-mode 2-core cables, check that both cores are used consistently for transmit and receive channels .
• Always follow industry standards (ANSI/TIA/EIA) for reliable and safe fiber connections . By carefully preparing, splicing or terminating, and testing your 2-core fiber optic cable, you can achieve a stable and high-performance connection suitable for FTTH or small network deployments.
