How many heads are there in the pigtail fiber

A fiber optic pigtail can have one or multiple "heads," meaning it can be single-fiber or multi-fiber, with common counts ranging from 1 to 72 fibers.Single-Fiber Pigtails

Most fiber optic pigtails are single-fiber, featuring a factory-terminated connector on one end and a bare fiber on the other end. This configuration is standard for most enterprise and residential applications, providing a simple and reliable connection for splicing into existing fiber networks .

Multi-Fiber Pigtails

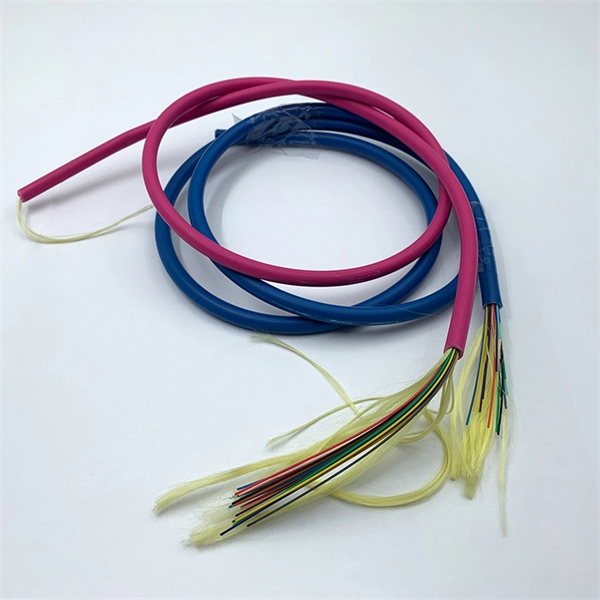

Multi-fiber pigtails are used in high-density environments such as data centers or optical distribution frames (ODFs). They can contain 2, 4, 6, 8, 12, 24, 48, or 72 fibers, often arranged in ribbon form for easier splicing and identification. Each fiber is color-coded according to the TIA/EIA-598-A standard, allowing technicians to trace and manage individual fibers efficiently .

Connector Types and Fiber Modes

Pigtails can be terminated with various connector types, including LC, SC, ST, FC, MU, E2000, and MPO, and are available in single-mode (yellow jacket) or multimode (orange or aqua jacket) configurations. The choice of connector and fiber count depends on the application, required transmission distance, and network density .

Summary

• Single-fiber pigtail: 1 head, most common in standard installations.
• Multi-fiber pigtail: 2–72 heads, used in high-density or data center applications.
• Color coding and ribbon format help manage multiple fibers efficiently. Thus, the number of "heads" in a pigtail fiber depends on whether it is single-fiber or multi-fiber, with multi-fiber pigtails offering a wide range of fiber counts for complex network setups .
