How to connect the pigtail of a dual-fiber optical module

Dual-fiber optical module pigtails are connected by splicing the bare fiber ends to the incoming fiber using fusion or mechanical splicing, while the pre-terminated connector plugs into the optical module.Overview of Dual-Fiber Pigtails

A dual-fiber pigtail consists of two optical fibers bundled together, with factory-terminated connectors on one end and bare fiber ends on the other. The connector end is designed to plug directly into an optical module, such as a transceiver or patch panel, while the bare ends are spliced to the network fiber to create a permanent, low-loss connection . This setup is commonly used in single-mode applications and high-density environments like data centers.

Connection Method

1. Preparation
   • Ensure the work area is clean and free of dust.
   • Gather tools: fusion splicer, fiber strippers, cleaver, and cleaning supplies .
   • Inspect the dual-fiber pigtail for any damage or contamination.
2. Fiber Stripping and Cleaving
   • Strip the protective coating from the bare fiber ends carefully without nicking the glass core.
   • Cleave the fiber ends to produce a flat, smooth surface for splicing .
3. Splicing
   • Fusion Splicing: Align the bare fiber ends of the pigtail with the incoming fiber in a fusion splicer. The splicer uses an electric arc to melt and fuse the fibers, creating a continuous optical path with minimal loss and reflectance. Fusion splicing is preferred for permanent, high-performance connections .
   • Mechanical Splicing: For temporary or quick connections, mechanical splicing can be used. The fibers are aligned in a precision sleeve with index-matching gel. This method is less permanent and typically used for multimode fibers .

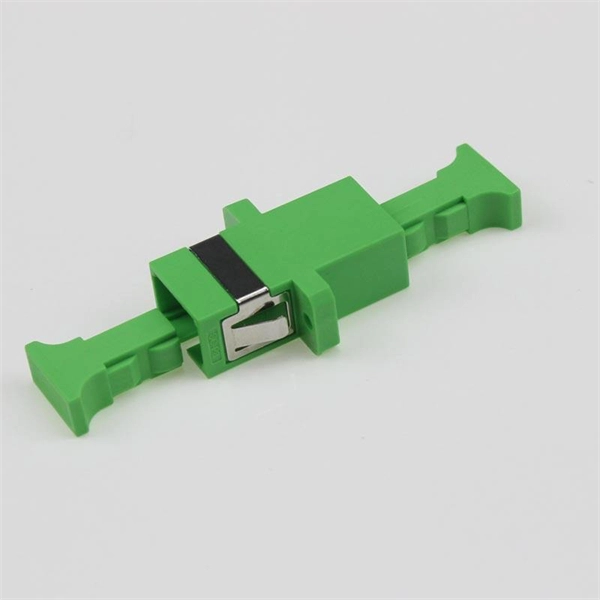

4. Connector Termination
   • The pre-terminated connector on the dual-fiber pigtail (e.g., LC duplex, SC duplex, MPO) is plugged into the optical module or patch panel port. Ensure proper orientation and secure the connector using the module's locking mechanism .
5. Testing
   • After splicing and connection, test the link using an optical power meter or OTDR to verify low insertion loss and minimal back reflection .

Best Practices

• Use factory-polished connectors to reduce field termination errors and signal loss.
• Keep dual-fiber pigtails organized and labeled to avoid misalignment in duplex connections.
• Protect spliced fibers in a splice tray to prevent bending or damage.
• For high-density applications, consider pre-assembled MPO/MTP pigtails for faster deployment. By following these steps, dual-fiber optical module pigtails can be connected efficiently, ensuring reliable, low-loss optical performance in both field and data center environments .
