Fiber Optic Distribution Box Components

A fiber optic distribution box consists of an enclosure, splice trays, adapters, connectors, splitters, and cable management elements that organize, protect, and connect fiber optic cables.Enclosure

The enclosure is the outer shell of the distribution box, designed to protect internal components from environmental factors such as dust, moisture, and mechanical damage. Many enclosures feature IP68 waterproof ratings for outdoor use and are made from robust materials with sealed doors and gaskets to ensure durability and reliability . Enclosures can be wall-mounted, pole-mounted, rack-mounted, or dome-shaped depending on the installation environment .

Splice Trays and Holders

Splice trays or holders are used to organize and secure fiber optic splices. They provide grooves or guides to hold spliced fibers in place, maintaining proper bend radius and preventing signal loss . These trays allow for both mechanical and fusion splicing, enabling connections between fiber cables or between a cable and an optical device.

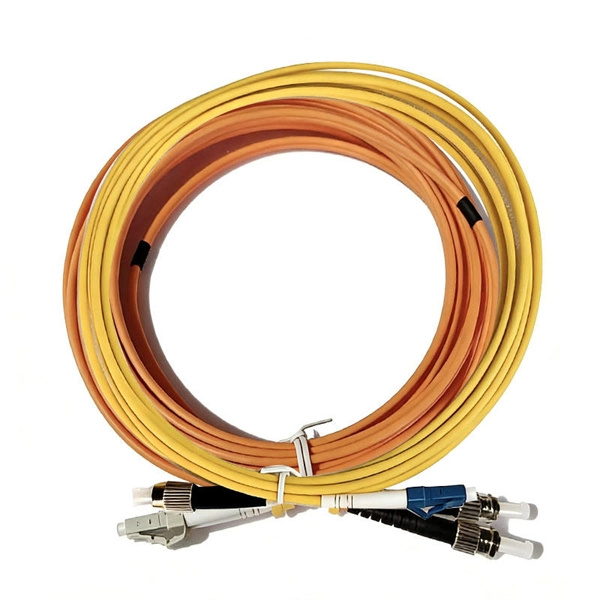

Adapters and Connectors

Adapters and connectors facilitate the connection of fiber optic cables within the box. Fast connectors allow quick termination, while hardened adapters provide stable, long-lasting connections. These components are essential for maintaining signal integrity and enabling easy network expansion or maintenance .

Splitters

Some distribution boxes include optical splitters, which divide a single fiber signal into multiple outputs. This is particularly common in FTTH (Fiber to the Home) networks, allowing one input fiber to serve multiple endpoints .

Cable Management Elements

Internal supporting frames, fiber discs, and fixing devices help organize cables and maintain proper bend radius, preventing damage and minimizing signal loss . These elements also provide space for storing excess fiber and facilitate easy access for maintenance or upgrades.

Additional Features

Fiber optic distribution boxes often include insulation between metal components and the enclosure, modular designs for scalability, and easy-access panels for troubleshooting . They are designed to support high-density fiber networks, ensuring efficient signal transmission and long-term durability. In summary, a fiber optic distribution box integrates protective enclosures, splice trays, adapters, connectors, splitters, and cable management systems to provide a centralized, organized, and secure point for fiber optic cable termination and distribution, supporting both indoor and outdoor network applications .
