How to calibrate an optical power meter at home

Optical power meters should be calibrated annually using NIST-traceable reference standards to ensure accurate measurements, with verification possible in the field using known-good meters.Calibration Overview

Optical power meters measure light intensity by converting photons into electrical signals via a photodiode. Over time, photodetectors drift due to aging, temperature cycling, humidity, and connector wear, which can cause measurement errors of 0.05–0.2 dB per year. Calibration ensures the meter's readings match known reference values and maintains traceability to national standards like NIST .

Laboratory Calibration Procedure

1. Send to an Accredited Lab: True calibration requires a controlled environment with NIST-traceable reference equipment. The lab compares the meter against a working standard, which is itself calibrated against a national standard .
2. Multi-Wavelength Testing: The meter is tested at multiple wavelengths (commonly 850, 1310, and 1550 nm) and power levels to verify accuracy across its operating range .
3. Adjustment and Certification: If deviations exceed specifications, the lab adjusts the meter's internal calibration tables and re-tests. A certificate is issued showing the meter's accuracy and the next calibration due date .
4. Traceability: Calibration ensures measurements are comparable worldwide, as the reference standards are linked to recognized national metrology institutes .

Field Verification and Practical Steps

While full calibration must be done in a lab, you can verify and maintain accuracy in the field:

1. Warm-Up: Turn on the meter and allow it to stabilize for a few minutes .
2. Zeroing: Cover the sensor and press the zero or null button to ensure the meter reads zero when no light is present .
3. Set Wavelength: Select the wavelength corresponding to the fiber system under test .
4. Clean Connectors: Use lint-free wipes and isopropyl alcohol to clean fiber connectors and the sensor to prevent contamination .
5. Compare to Reference: Use a known-good meter or a stable reference light source to check readings. Any significant deviation may indicate the need for lab calibration .
6. Record Data: Log readings for documentation and trend analysis .

Recommended Frequency

• Annual Calibration: Standard for ISO 9001 systems and most contracts .
• Earlier Calibration: Required if the meter experiences heavy field use, drops, or extreme environmental conditions .
• Verification Between Calibrations: Cross-check against a reference meter periodically to ensure ongoing accuracy .

Key Tips

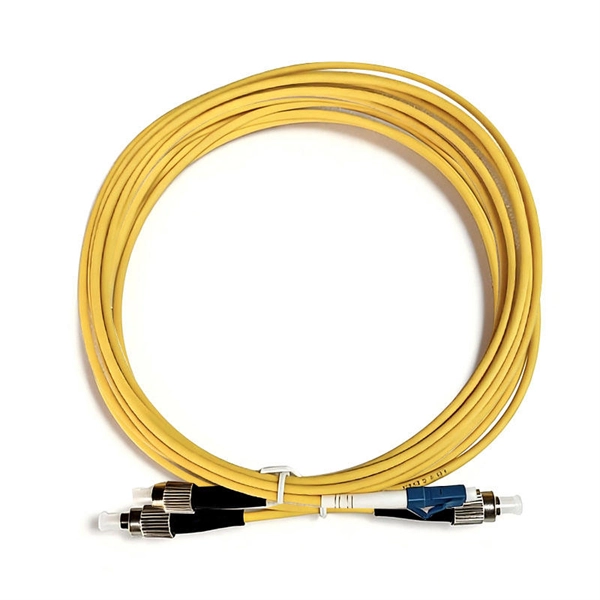

• Always use the same fiber and connector type for calibration as in actual measurements to minimize errors caused by reflections .
• Store the meter in a clean, dry environment when not in use .
• Regular inspection and cleaning of the sensor and ports help maintain measurement reliability . By following these procedures, you can ensure your optical power meter provides accurate and reliable measurements, whether in the lab or in the field.
