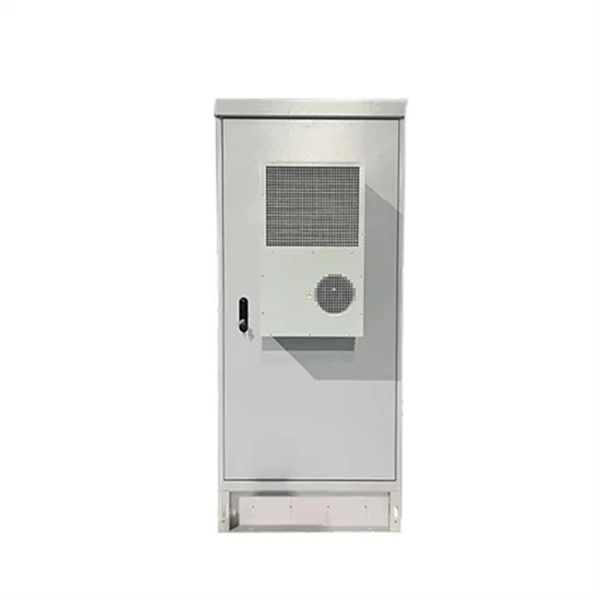

Optical Distribution Box and ODN

An Optical Distribution Box (ODB) is a key component of an Optical Distribution Network (ODN), serving as a secure termination and distribution point for fiber optic cables between the central office and end users.What is an Optical Distribution Network (ODN)?

An Optical Distribution Network (ODN) is the passive fiber infrastructure that connects the Optical Line Terminal (OLT) in the central office to the Optical Network Unit (ONU/ONT) at the subscriber side, forming the backbone of FTTH, FTTB, and other fiber access networks . The ODN is composed entirely of passive components, meaning it does not require electrical power, which ensures energy efficiency, reliability, and minimal maintenance . Its main functions include:

• Transmission of optical signals bidirectionally between OLT and ONUs.
• Splitting optical signals to serve multiple subscribers using optical splitters.
• Protecting and organizing fibers through structured enclosures and closures. Typical ODN components include fiber optic cables (feeder, distribution, and drop), optical splitters, fiber distribution boxes, splice closures, optical distribution frames (ODF), and patch cords .

Role of Optical Distribution Boxes (ODB)

The Optical Distribution Box is a critical element within the ODN, acting as a secondary distribution point for fiber connections . Its main purposes are:

• Termination and protection of fiber optic cables from environmental damage, moisture, and mechanical stress.
• Distribution of optical signals to multiple subscriber lines.
• Facilitating maintenance and network expansion by providing organized access to fiber connections.
• Housing splitters or connectors for efficient signal routing. Modern ODBs are designed with modular, high-density frames, often supporting up to 144+ fiber cores per sub-rack, and are rated IP68 for waterproofing, making them suitable for aerial, pole, or underground installations .

Traditional ODN vs Quick ODN

• Traditional ODN relies on manual fiber splicing and equal-ratio splitters (e.g., 1:2, 1:4, 1:8), which can be time-consuming and require skilled technicians. Mechanical connectors may corrode over time, leading to maintenance challenges .
• Quick ODN uses pre-terminated modular fiber cables and plug-and-play installation, reducing splicing, labor costs, and deployment time while improving reliability .

Key Considerations in ODN Design

• Optical Link Budget: Ensuring total power loss (fiber attenuation, splices, connectors, splitters) stays within OLT/ONU sensitivity thresholds.
• Splitter Architecture: Choosing centralized or distributed splitters based on fiber efficiency and maintenance needs.
• Routing and Protection: Structured cabling, minimizing bends, and using armored or ducted cables for outdoor sections.
• Scalability: Designing ODNs to support future upgrades like XGS-PON (10G), 25G-PON, or 50G-PON without full replacement .

Summary

The ODN forms the passive backbone of fiber networks, while the Optical Distribution Box ensures secure, organized, and scalable distribution of optical signals to end users. Together, they determine the performance, reliability, and cost-efficiency of FTTH and other fiber access deployments, making them essential for modern high-speed broadband networks .
