How to bend a fiber optic pigtail at a 90-degree angle

Bending a fiber optic pigtail at 90 degrees is possible only if the bend radius is respected to prevent signal loss or fiber damage.Understanding Bend Radius

Every fiber optic cable has a minimum bend radius, which is the smallest radius the cable can be bent without causing damage or excessive signal attenuation . For most standard fibers, the critical bending radius is approximately 8 times the cable diameter, though this varies depending on fiber type, construction, and cladding materials . Single-mode fibers are more sensitive than multimode fibers due to their smaller core size . Bend-insensitive fibers (e.g., G.657) can tolerate tighter bends, but physical protection layers still impose limits .

Practical Steps for a 90-Degree Bend

1. Check the Cable Specifications: Always verify the manufacturer's recommended minimum bend radius for the specific pigtail you are using .
2. Use a Gradual Curve: Instead of a sharp fold, create a curved bend that respects the minimum radius. Even when routing a 90-degree turn, the fiber should form a smooth arc rather than a tight corner .
3. Avoid Tension: Ensure the fiber is not under pulling tension during the bend. The minimum bend radius is larger when the cable is under tension, typically 20 times the cable diameter during installation, versus 10 times when relaxed .

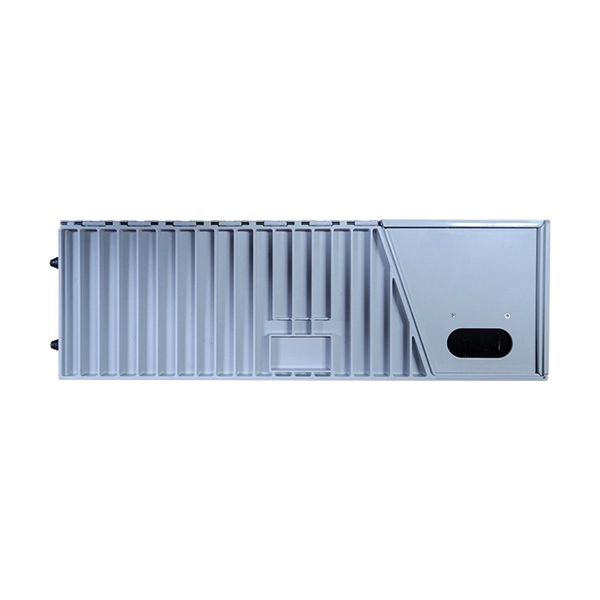

4. Support the Fiber: Use cable management tools such as fiber guides, trays, or bend-radius protectors to maintain the curve and prevent kinks or microbends .
5. Rate of Bend Matters: The speed and force applied when bending the fiber affect attenuation. Bend slowly and avoid sudden movements .

Risks of Improper Bending

• Macrobending Loss: Light escapes from the fiber core, causing signal attenuation .
• Microbending: Small-scale pressure points can scatter light and increase insertion loss .
• Mechanical Damage: Exceeding the bend radius can create microcracks in the glass, leading to delayed fiber breakage .

Alternatives for Tight Corners

If a true 90-degree bend is unavoidable, consider using pre-terminated pigtails with bend-insensitive fibers, fiber optic adapters with right-angle routing, or mirrors/lenses in specialized applications to redirect light without physically bending the fiber sharply . By following these guidelines, you can safely route fiber optic pigtails around corners while maintaining signal integrity and long-term reliability.
