How to plug a single-core fiber optic cable into a switch

To connect a single-mode fiber optic cable to a switch, use a compatible SFP/SFP+ transceiver module, ensure duplex LC connectors, and properly terminate or attach the fiber to maintain signal integrity.Required Components

• Single-mode fiber optic cable: Typically used for long-distance connections, with a small 9-micron core for a single wavelength signal .
• SFP or SFP+ transceiver module: Choose a module compatible with single-mode fiber and the switch's port speed (1G for SFP, 10G for SFP+), .
• LC connectors: Most SFP modules use duplex LC connectors, requiring two strands of fiber—one for transmit (TX) and one for receive (RX), .

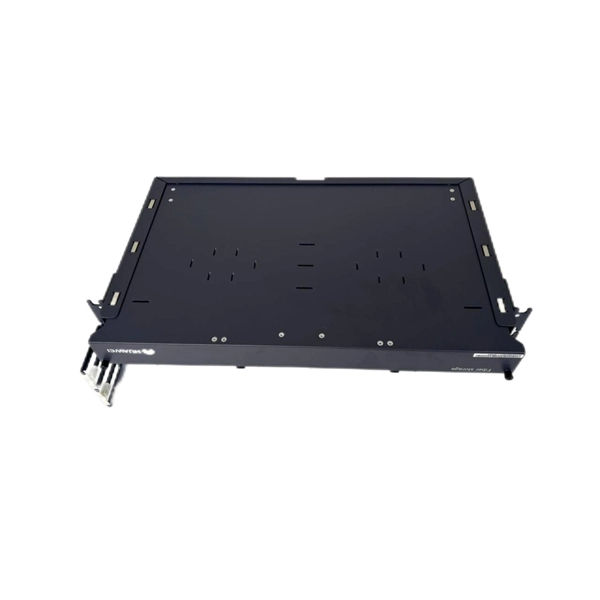

• Optional patch panel: Helps organize and manage fiber connections, especially in larger networks .

Step-by-Step Connection

1. Verify switch compatibility: Ensure the switch has available SFP/SFP+ ports and supports single-mode fiber.
2. Install the SFP module: Insert the SFP or SFP+ transceiver into the switch port. These modules are hot-swappable, so the switch does not need to be powered down .
3. Prepare the fiber cable: If using pre-terminated fiber, ensure the LC connectors are clean and free of dust. For bulk fiber, terminate the ends using proper tools like a cleaver and fusion splicer .
4. Connect the fiber strands: Attach the two strands of the duplex fiber to the SFP module, ensuring the transmit (TX) on one end connects to the receive (RX) on the other end, and vice versa .
5. Optional patch panel connection: If using a patch panel, connect the fiber to the panel first, then run patch cords from the panel to the SFP modules.
6. Test the connection: Use tools like a visual fault locator or Optical Time Domain Reflectometer (OTDR) to verify signal integrity and ensure minimal loss .

Best Practices

• Clean connectors: Dust or debris can significantly degrade signal quality.
• Maintain bend radius: Avoid sharp bends to prevent fiber damage.
• Label cables: Helps with troubleshooting and future maintenance.
• Use compatible SFP modules: Ensure the module matches both the fiber type and the switch's bandwidth requirements . By following these steps and using the correct equipment, a single-mode fiber optic cable can be reliably connected to a network switch, providing high-speed, long-distance network connectivity.
