How to connect fiber optic cables to pigtails and their prices

Fiber optic cables are typically connected to pigtail cables using fusion or mechanical splicing, with pigtails providing a factory-terminated connector for reliable, low-loss connections.What is a Fiber Optic Pigtail?

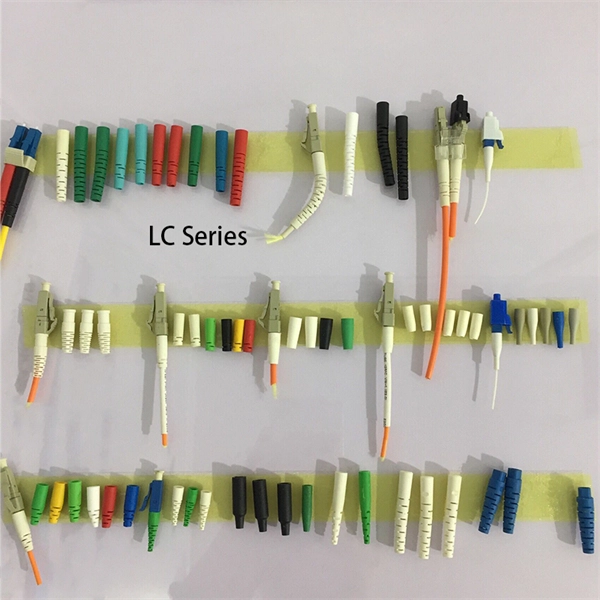

A fiber optic pigtail is a short optical fiber with a pre-installed connector on one end and a bare fiber on the other. The connector end plugs into equipment, patch panels, or optical distribution frames, while the bare end is spliced to the incoming fiber cable. Pigtails are available in single-mode or multi-mode types and with various connector types such as SC, LC, ST, or FC .

How to Connect Using Fusion Splicing

1. Prepare the Fiber: Strip the protective jacket, clean the bare fiber, and cleave it to a precise length using a fiber cleaver .
2. Align the Fibers: Place the bare end of the pigtail and the incoming fiber into a fusion splicer, which aligns them with high precision .
3. Fuse the Fibers: The splicer uses an electric arc to melt and join the fibers, creating a permanent, low-loss connection .
4. Protect the Splice: Place the fused fiber into a splice protector or tray to prevent damage and maintain signal integrity .

Mechanical Splicing Alternative

Mechanical splicing uses a splice sleeve or gel to hold the fibers together without melting. It is faster but may have slightly higher insertion loss compared to fusion splicing .

Tools Required

• Fiber stripper and cleaver
• Fusion splicer or mechanical splice kit
• Cleaning supplies (alcohol wipes, lint-free cloths)
• Splice protection sleeves or trays

Pricing

• Fiber optic pigtails typically cost $2–$10 per unit, depending on fiber type, connector type, and length .
• Fusion splicing equipment can range from $5,000 to $15,000 for professional-grade splicers, though mechanical splice kits are cheaper ($50–$200).
• Professional splicing services usually charge $10–$30 per splice, depending on location and project scale .

Summary

Using a pigtail simplifies fiber termination by moving the delicate connector work to a factory environment, ensuring low signal loss and high reliability. Fusion splicing is preferred for permanent, high-performance connections, while mechanical splicing is suitable for temporary or quick installations. Costs vary based on pigtail type, splicing method, and whether you perform the work yourself or hire a professional.
