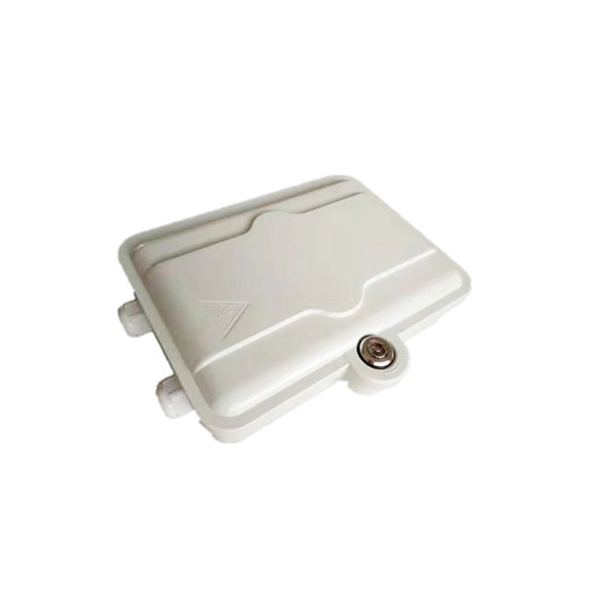

How to install the material unloading line of the distribution box

To install the material unloading line of a distribution box, securely mount the box, connect the input and output lines correctly, ensure proper grounding, and perform insulation and circuit tests.Preparation and Safety

Before installation, ensure the power supply is completely cut off and verify with an electrical tester. Operators should wear insulating gloves, safety glasses, and slip-resistant shoes to prevent electric shock. Prepare all necessary tools such as screwdrivers, wire strippers, multimeters, and insulation resistance testers, and inspect the distribution box and accessories for damage .

Mounting the Distribution Box

1. Select the installation location: Choose a dry, ventilated area away from flammable, explosive, or corrosive substances. For outdoor installations, use a waterproof box with a rain cover .
2. Mark and drill holes: Align the box with expansion bolts and secure it firmly. Ensure the box is level, stable, and free from tilting or looseness .
3. Height considerations: Residential boxes are typically installed around 1.5 meters above the ground, while industrial boxes depend on surrounding equipment and space .

Wiring the Material Unloading Line

1. Wire preparation: Strip the insulation to expose the conductor, leaving an appropriate length for connection .
2. Terminal connections: Connect the input and output lines according to standard color coding: phase to phase, neutral to neutral, and ground to ground. Use a wire stripper or screws to secure the wires tightly to the terminals .
3. Circuit breakers: Install independent breakers for each line according to load requirements. Ensure each circuit is properly labeled for future maintenance .
4. Wire arrangement: Route wires neatly inside the box, secure with cable ties, and leave space for heat dissipation. Avoid tangling or contact with sharp edges .

Testing and Verification

1. Insulation resistance test: Use an insulation resistance tester to verify that the resistance between wires and the box meets required standards .
2. Circuit on/off test: Check each circuit with a multimeter to ensure proper connectivity and absence of short circuits .

Final Considerations

• Ensure proper grounding to prevent electrical hazards .
• Maintain clear labeling of all circuits for easy troubleshooting and future upgrades .
• Schedule regular inspections and maintenance to ensure long-term reliability . Following these steps ensures that the material unloading line is safely and efficiently integrated into the distribution box, complying with electrical standards and minimizing the risk of faults or hazards.
