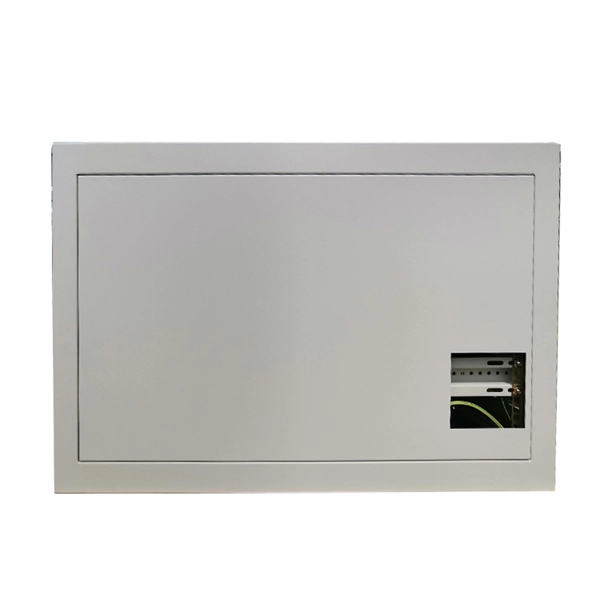

Classification of Outdoor Distribution Boxes

Outdoor distribution boxes are classified based on installation environment, material, mounting method, and protection standards to ensure safe and reliable power distribution in exposed conditions.Classification by Installation Environment

Outdoor distribution boxes are designed for exposed environments where they face rain, dust, sunlight, and temperature fluctuations. Unlike indoor boxes, they require robust enclosures and high ingress protection (IP) ratings to maintain functionality and safety in harsh conditions . Common applications include residential overhead supply points, street lighting, telecom networks, and industrial substations .

Classification by Material

1. Plastic Enclosures: Typically made from polycarbonate or ABS, these boxes offer excellent weather resistance, electrical insulation, and corrosion resistance. They are lightweight and suitable for residential, coastal, or humid environments .
2. Metal Enclosures: Fabricated from galvanized steel, aluminum, or stainless steel, metal boxes provide superior mechanical protection and are preferred in industrial, high-EMI, or extreme weather zones. Stainless steel is especially recommended for coastal or high-humidity areas due to corrosion resistance .

Classification by Mounting Method

• Pole-Mounted Boxes: Installed on utility poles for overhead supply or street lighting applications. Examples include ABC distribution boxes and pole-mounted cut outs .
• Wall-Mounted Boxes: Fixed to building walls, often under eaves, for service units or residential connections. These boxes typically feature lockable covers for security .
• Ground-Mounted or Pedestal Boxes: Used in industrial or public infrastructure settings where pole or wall mounting is impractical. These often house larger components like circuit breakers or fiber optic connections .

Classification by Function and Standards

• Service Units: Provide connection points for residential or commercial power supply, often rated for specific amperages (e.g., 100A or 400A) and fuse types .
• Street Lighting Cut Outs: Designed for outdoor lighting circuits, tested according to standards such as BS 7654 .
• Industrial Distribution Boxes: House critical components like relays, circuit breakers, and metering devices, complying with IEC 60439, NEMA, or IP65+ standards for safety and operational continuity .

Key Considerations

• Ingress Protection (IP/NEMA Ratings): Ensure the box is rated for dust, water, and environmental exposure.
• Security Features: Lockable covers prevent unauthorized access and vandalism.
• Material Suitability: Match the enclosure material to environmental conditions to prevent corrosion or mechanical damage.
• Accessibility and Maintenance: Proper placement and design facilitate easy maintenance and reduce downtime . In summary, outdoor distribution boxes are classified by environmental exposure, material, mounting method, and functional standards, with each category tailored to ensure safety, durability, and operational reliability in outdoor electrical installations .
